SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Ca & Cm Timer Accumulator, Ct Ticket


04 - Ca & Cm Control Center & Components


05 - Ct Control Center Components


06 - Ct Control Center Components


07 - Ct Control Center Components


08 - Door Switch, Temp Control & Terminal Blk


09 - Recirculation Components-rear View

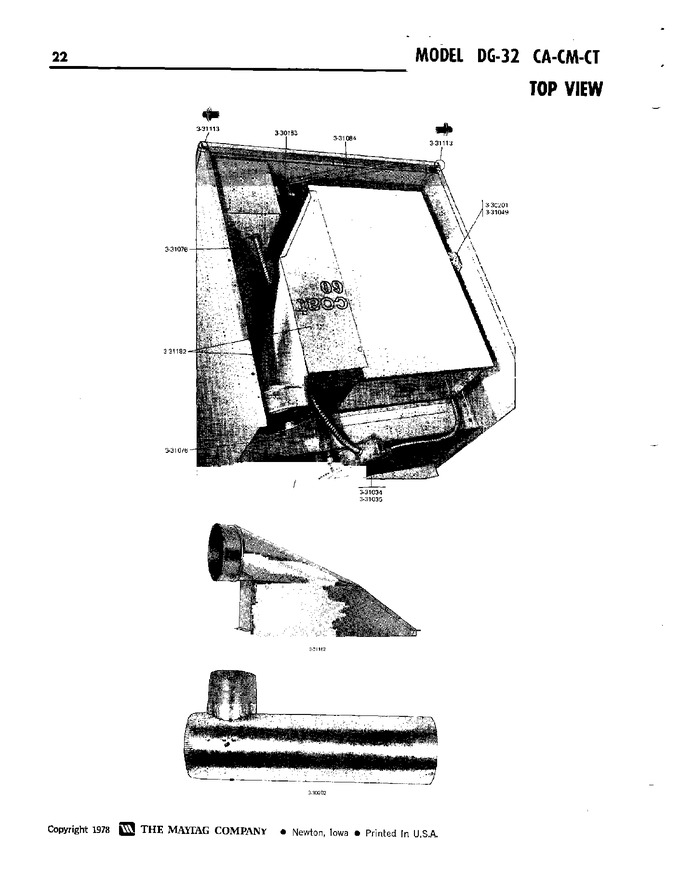

10 - Top View


11 - Burner Valve & Controls-upper Comp.


12 - Lint Screen-lower Front


13 - Gas Valve


14 - Burner Assembly & Components


15 - Rear View-shield Removed


16 - Drum Pulley & Bearing Support Assembly


17 - Drum Bearing Support Assembly


18 - Motor & Tension Arm Assembly


19 - 240 Volt, 50hz Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	330183		Transformer	00	Appelez-nous	-
002	Y330201		High Limit Thermostat	00	Appelez-nous	-
003	Y330202		Recirculation Tee Assembly	00	Appelez-nous	-
004	NLA		Baffle Assembly	00	Appelez-nous	-
005	NLA		Wire Nut	00	Appelez-nous	-
006	331049		Ventilated Cover - Hi-limit	00	Appelez-nous	-
007	NLA		Gas Supply Line-28 1/2 Inch	00	Appelez-nous	-
008	331084		Support Rod, Upper Door	00	Appelez-nous	-
009	NLA		Hinge Rivet	00	Appelez-nous	-
010	NLA		Recirculation Boot	00	Appelez-nous	-
011	NLA		Damper, Heat Reclaimer	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
