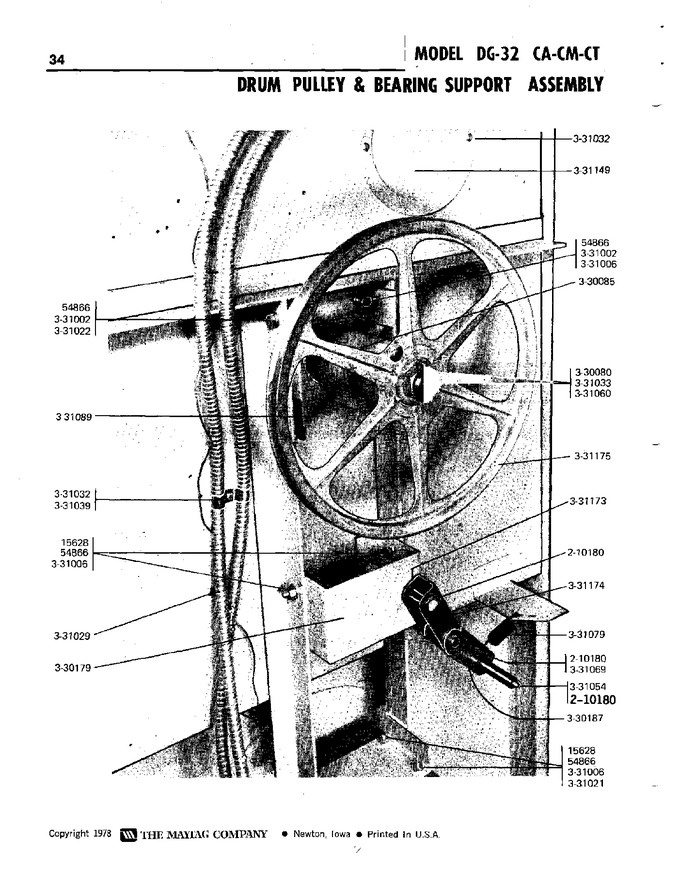

16 - Drum Pulley & Bearing Support Assembly


17 - Drum Bearing Support Assembly


18 - Motor & Tension Arm Assembly


19 - 240 Volt, 50hz Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Bolt, 5/16 X 3/4 Hex	00	Appelez-nous	-
002	Y054866		Lock Washer	00	Appelez-nous	-
003	Y330080		Spider & Shaft Assembly	00	Appelez-nous	-
004	Y330085		Drum Support Housing	00	Appelez-nous	-
005	Y330179		Bracket, Pin	00	Appelez-nous	-
006	330187		Idler Arm Assembly W/pin	00	Appelez-nous	-
007	NLA		Bolt, Drum	00	Appelez-nous	-
008	NLA		Nut-drum Support Bolt, 5/16	00	Appelez-nous	-
009	NLA		Washer - Motor Support Bolt	00	Appelez-nous	-
010	NLA		Washer, Drum Support	00	Appelez-nous	-
011	NLA		Clip	00	Appelez-nous	-
012	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
013	331033		Hex Nut-drum Pulley Shaft	00	Appelez-nous	-
014	NLA		Clip, Conduit (cabinet Back)	00	Appelez-nous	-
015	331054		Grease Fitting - Pulley Pin	00	Appelez-nous	-
016	331060		Key, Drum	00	Appelez-nous	-
017	331069		Pivot Pin, Tension Arms	00	Appelez-nous	-
018	331079		Tension Spring	00	Appelez-nous	-
019	331089		Shim, Drum Rod	00	Appelez-nous	-
020	NLA		Cover Plate, Drum Rod Access	00	Appelez-nous	-
021	331173		Washer	00	Appelez-nous	-
022	331174		Idler Bracket	00	Appelez-nous	-
023	331175		Drum Pulley	00	Appelez-nous	-
024	210180		Retaining Ring	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
