SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Ca & Cm Timer Accumulator, Ct Ticket


04 - Ca & Cm Control Center & Components


05 - Ct Control Center Components


06 - Ct Control Center Components


07 - Ct Control Center Components


08 - Door Switch, Temp Control & Terminal Blk


09 - Recirculation Components-rear View


10 - Top View


11 - Burner Valve & Controls-upper Comp.


12 - Lint Screen-lower Front


13 - Gas Valve


14 - Burner Assembly & Components


15 - Rear View-shield Removed


16 - Drum Pulley & Bearing Support Assembly

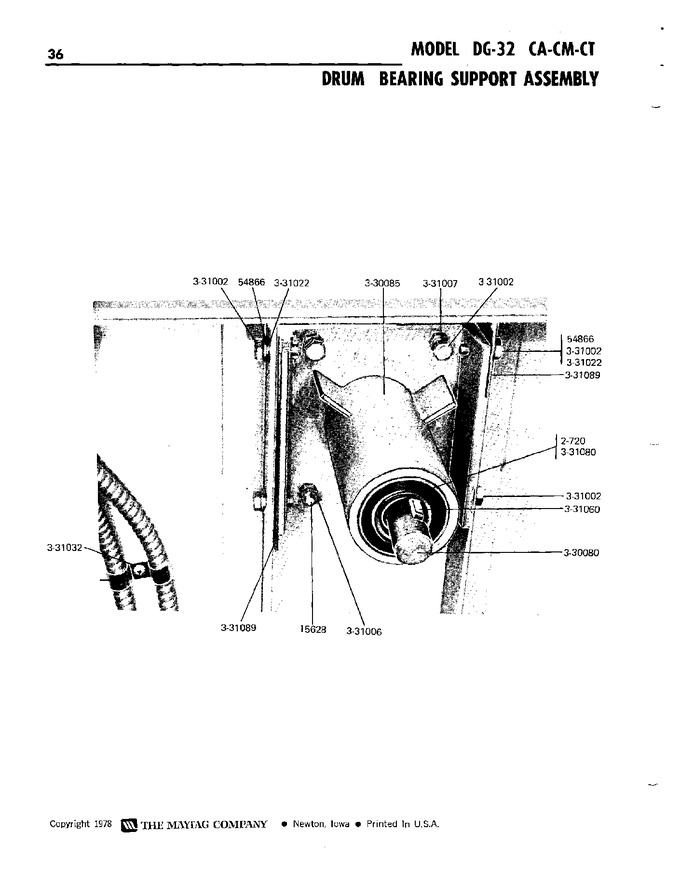

17 - Drum Bearing Support Assembly


18 - Motor & Tension Arm Assembly


19 - 240 Volt, 50hz Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Bolt, 5/16 X 3/4 Hex	00	Appelez-nous	-
002	Y054866		Lock Washer	00	Appelez-nous	-
003	Y200720		Ball Bearing, Radial	00	Appelez-nous	-
004	Y330080		Spider & Shaft Assembly	00	Appelez-nous	-
005	Y330085		Drum Support Housing	00	Appelez-nous	-
006	NLA		Bolt, Drum	00	Appelez-nous	-
007	NLA		Nut-drum Support Bolt, 5/16	00	Appelez-nous	-
008	NLA		Nut-drum Support Bolt, 3/8	00	Appelez-nous	-
009	NLA		Washer, Drum Support	00	Appelez-nous	-
010	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
011	331060		Key, Drum	00	Appelez-nous	-
012	331080		Spacer, Center Bearing	00	Appelez-nous	-
013	331089		Shim, Drum Rod	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
