SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Ca & Cm Timer Accumulator, Ct Ticket


04 - Ca & Cm Control Center & Components


05 - Ct Control Center Components


06 - Ct Control Center Components


07 - Ct Control Center Components


08 - Door Switch, Temp Control & Terminal Blk


09 - Recirculation Components-rear View


10 - Top View


11 - Burner Valve & Controls-upper Comp.

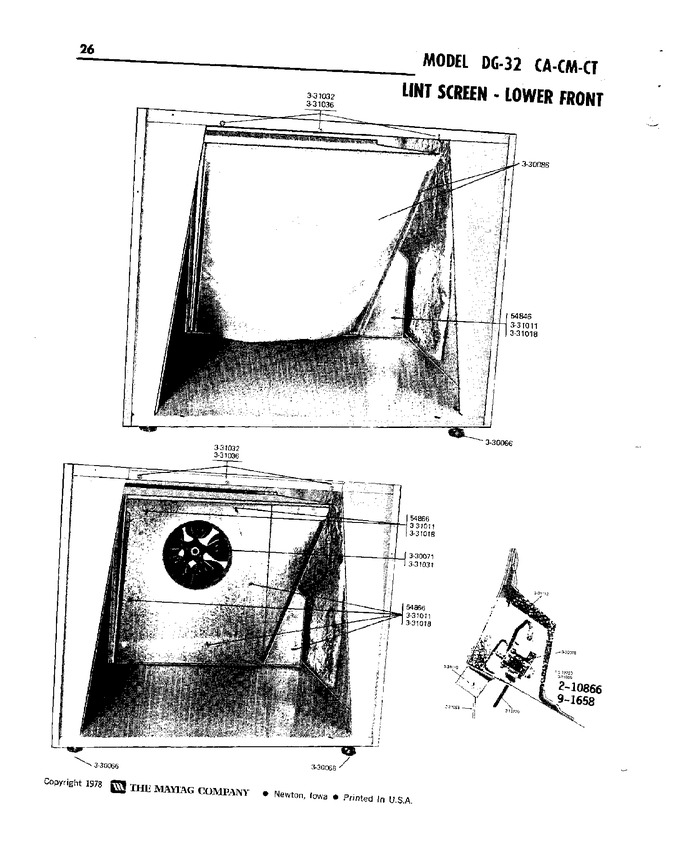

12 - Lint Screen-lower Front


13 - Gas Valve


14 - Burner Assembly & Components


15 - Rear View-shield Removed


16 - Drum Pulley & Bearing Support Assembly


17 - Drum Bearing Support Assembly


18 - Motor & Tension Arm Assembly


19 - 240 Volt, 50hz Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y054866		Lock Washer	00	Appelez-nous	-
002	WPY055980		Hi-temp Adhesive, 2 Oz Tube   (Replaces: Y055980)	00		Immediately	$ 28.72
003	212220		Screw-hex Hd Type B No.6 X 15/16	00	Appelez-nous	-
004	NLA		Leveling Leg	00	Appelez-nous	-
005	Y330071		Impeller, Blower	00	Appelez-nous	-
006	Y330078		Switch, Damper	00	Appelez-nous	-
007	Y330086		Lint Screen W/frame	00	Appelez-nous	-
008	M0282005		Nut No.6 - 32   (Replaces: 331005)	00			$ 7.07
009	NLA		Wing Nut, Lint Hood (cab.)	00	Appelez-nous	-
010	NLA		Washer, Lint Hood (cabinet)	00	Appelez-nous	-
011	331031		Set Screw, Impeller	00	Appelez-nous	-
012	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
013	331036		Washer-front Panel Screws	00	Appelez-nous	-
014	331053		Damper	00	Appelez-nous	-
015	NLA		Hinge Pin, Damper	00	Appelez-nous	-
016	NLA		Shield, Damper Switch	00	Appelez-nous	-
017	210866		Twin Speed Nut	00	Appelez-nous	-
018	NLA		Twin Fastener W/screws	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
