| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
NLA |
|
Bolt, 5/16 X 3/4 Hex |
00 |
Appelez-nous
|
- |
|
|
|
| 002 |
WP62739 |
 |
Hex. Nut, 3/8 Inch (Replaces: Y052749) |
00 |
|
|
$ 6.85 |
|
|
| 003 |
Y054866 |
|
Lock Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 004 |
210180 |
|
Retaining Ring |
00 |
Appelez-nous
|
- |
|
|
|
| 005 |
Y330080 |
|
Spider & Shaft Assembly |
00 |
Appelez-nous
|
- |
|
|
|
| 006 |
Y330072 |
|
Motor Complete |
00 |
Appelez-nous
|
- |
|
|
|
| 007 |
Y330087 |
|
Drum Assembly Complete |
00 |
Appelez-nous
|
- |
|
|
|
| 008 |
NLA |
|
Capicator |
00 |
Appelez-nous
|
- |
|
|
|
| 009 |
Y330178 |
|
Reduction Pulley |
00 |
Appelez-nous
|
- |
|
|
|
| 010 |
Y330179 |
|
Bracket, Pin |
00 |
Appelez-nous
|
- |
|
|
|
| 011 |
330187 |
|
Idler Arm Assembly W/pin |
00 |
Appelez-nous
|
- |
|
|
|
| 012 |
NLA |
|
Internal Motor Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 013 |
NLA |
|
Motor Base W/clamps |
00 |
Appelez-nous
|
- |
|
|
|
| 014 |
NLA |
|
Bolt, Drum |
00 |
Appelez-nous
|
- |
|
|
|
| 015 |
NLA |
|
Nut-drum Support Bolt, 5/16 |
00 |
Appelez-nous
|
- |
|
|
|
| 016 |
NLA |
|
Nut-drum Support Bolt, 3/8 |
00 |
Appelez-nous
|
- |
|
|
|
| 017 |
NLA |
|
Set Screw, Motor Pulley |
00 |
Appelez-nous
|
- |
|
|
|
| 018 |
NLA |
|
Washer - Motor Support Bolt |
00 |
Appelez-nous
|
- |
|
|
|
| 019 |
NLA |
|
Washer, Drum Support |
00 |
Appelez-nous
|
- |
|
|
|
| 020 |
WP90767 |
 |
Screw, Switch Plate, (vault) (Replaces: 331026) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 021 |
NLA |
|
Clip |
00 |
Appelez-nous
|
- |
|
|
|
| 022 |
61002031 |
 |
Screw - Center Panel (Replaces: 331032) |
00 |
|
|
$ 41.36 |
|
|
| 023 |
331033 |
|
Hex Nut-drum Pulley Shaft |
00 |
Appelez-nous
|
- |
|
|
|
| 024 |
NLA |
|
Clip, Conduit (cabinet Back) |
00 |
Appelez-nous
|
- |
|
|
|
| 025 |
331048 |
|
Cover, Blower Impeller |
00 |
Appelez-nous
|
- |
|
|
|
| 026 |
331054 |
|
Grease Fitting - Pulley Pin |
00 |
Appelez-nous
|
- |
|
|
|
| 027 |
331060 |
|
Key, Drum |
00 |
Appelez-nous
|
- |
|
|
|
| 028 |
331069 |
|
Pivot Pin, Tension Arms |
00 |
Appelez-nous
|
- |
|
|
|
| 029 |
NLA |
|
Drum Rod |
00 |
Appelez-nous
|
- |
|
|
|
| 030 |
331079 |
|
Tension Spring |
00 |
Appelez-nous
|
- |
|
|
|
| 031 |
NLA |
|
Shield, Motor |
00 |
Appelez-nous
|
- |
|
|
|
| 032 |
331089 |
|
Shim, Drum Rod |
00 |
Appelez-nous
|
- |
|
|
|
| 033 |
NLA |
|
Support, Rear Cover (lt) |
00 |
Appelez-nous
|
- |
|
|
|
| 034 |
NLA |
|
Support, Rear Cover (rt) |
00 |
Appelez-nous
|
- |
|
|
|
| 035 |
NLA |
|
Cover Plate, Drum Rod Acces |
00 |
Appelez-nous
|
- |
|
|
|
| 036 |
331160 |
|
Motor Pulley |
00 |
Appelez-nous
|
- |
|
|
|
| 037 |
4L560 |
|
V Belt - Drive (Replaces: 331162) |
00 |
|
Immediately |
$ 20.10 |
|
|
| 038 |
WG02F05449 |
 |
V Belt - Reduction (Replaces: 331163) |
00 |
|
|
$ 84.06 |
|
|
| 039 |
331173 |
|
Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 040 |
331174 |
|
Idler Bracket |
00 |
Appelez-nous
|
- |
|
|
|
| 041 |
331175 |
|
Drum Pulley |
00 |
Appelez-nous
|
- |
|
|
|

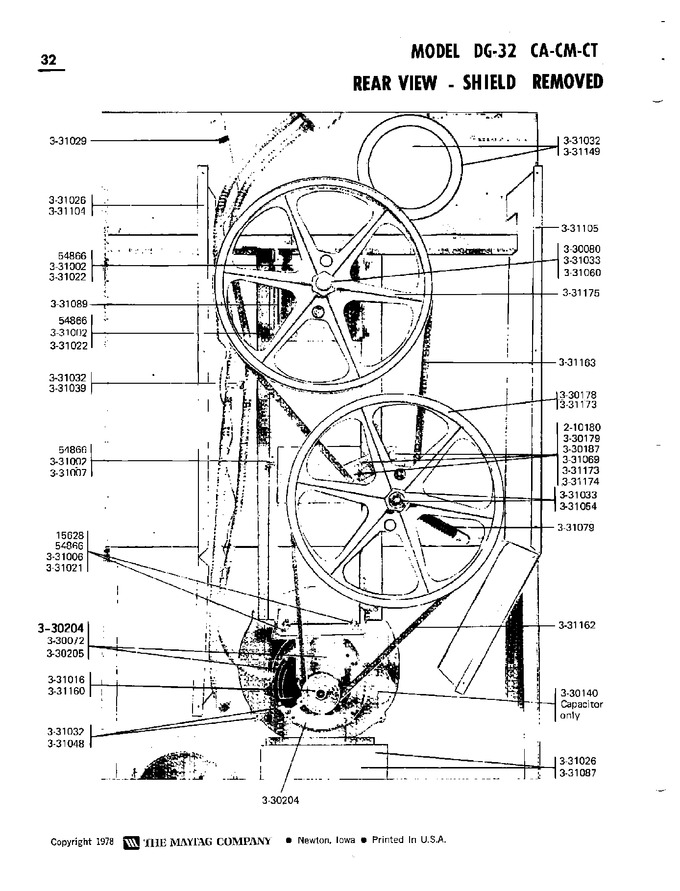

View Diagram in Separate Window
