SELECT A DIAGRAM

01 - Front View-door Open


02 - Rear View


03 - Ca & Cm Timer Accumulator, Ct Ticket


04 - Ca & Cm Control Center & Components


05 - Ct Control Center Components


06 - Ct Control Center Components


07 - Ct Control Center Components


08 - Door Switch, Temp Control & Terminal Blk


09 - Recirculation Components-rear View


10 - Top View


11 - Burner Valve & Controls-upper Comp.


12 - Lint Screen-lower Front


13 - Gas Valve


14 - Burner Assembly & Components


15 - Rear View-shield Removed


16 - Drum Pulley & Bearing Support Assembly


17 - Drum Bearing Support Assembly

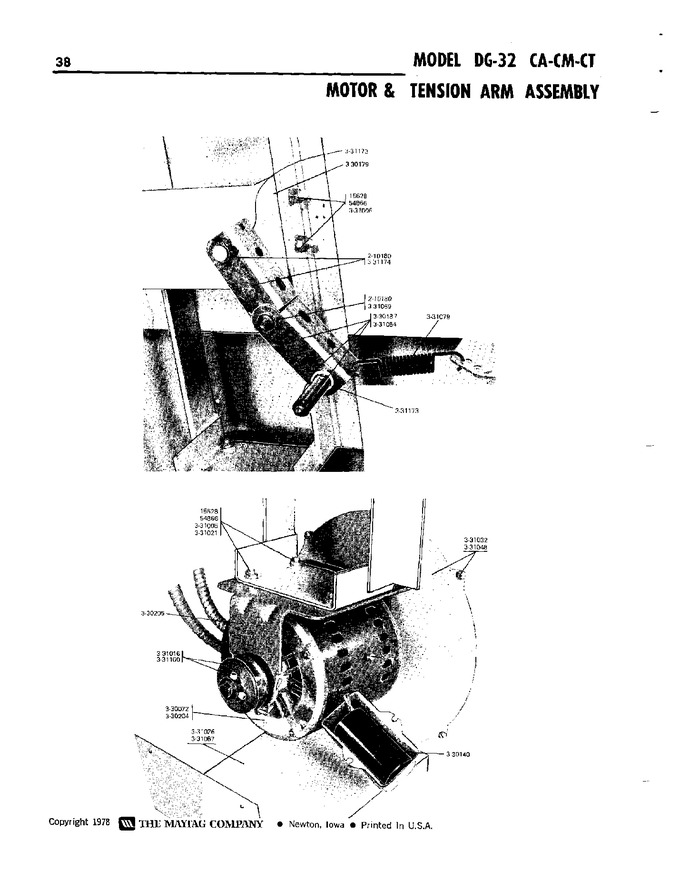

18 - Motor & Tension Arm Assembly


19 - 240 Volt, 50hz Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Bolt, 5/16 X 3/4 Hex	00	Appelez-nous	-
002	Y054866		Lock Washer	00	Appelez-nous	-
003	210180		Retaining Ring	00	Appelez-nous	-
004	Y330072		Motor Complete	00	Appelez-nous	-
005	NLA		Capicator	00	Appelez-nous	-
006	Y330179		Bracket, Pin	00	Appelez-nous	-
007	330187		Idler Arm Assembly W/pin	00	Appelez-nous	-
008	NLA		Internal Motor Switch	00	Appelez-nous	-
009	NLA		Motor Base W/clamps	00	Appelez-nous	-
010	NLA		Nut-drum Support Bolt, 5/16	00	Appelez-nous	-
011	NLA		Set Screw, Motor Pulley	00	Appelez-nous	-
012	NLA		Washer - Motor Support Bolt	00	Appelez-nous	-
013	WP90767		Screw, Switch Plate, (vault)   (Replaces: 331026)	00		Immediately	$ 7.04
014	61002031		Screw - Center Panel   (Replaces: 331032)	00			$ 41.36
015	331048		Cover, Blower Impeller	00	Appelez-nous	-
016	331054		Grease Fitting - Pulley Pin	00	Appelez-nous	-
017	331069		Pivot Pin, Tension Arms	00	Appelez-nous	-
018	331079		Tension Spring	00	Appelez-nous	-
019	NLA		Shield, Motor	00	Appelez-nous	-
020	331160		Motor Pulley	00	Appelez-nous	-
021	331173		Washer	00	Appelez-nous	-
022	331174		Idler Bracket	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
