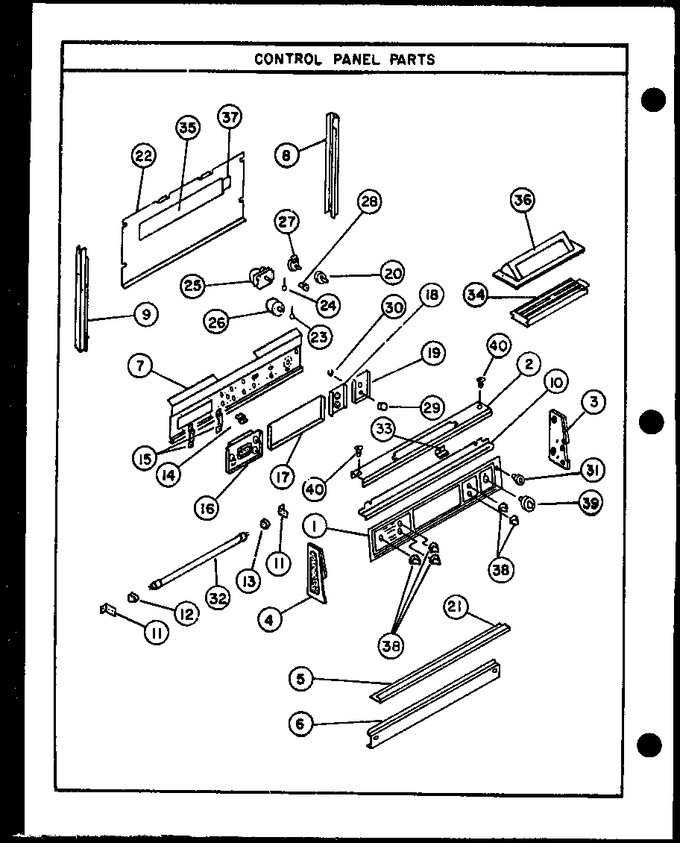

01 - Control Panel Parts
02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Microwave Parts
05 - Oven Door Parts
06 - Page 1
07 - Power Supply Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y64139 | Glass, Control Panel |
|
- | |||||
| 2 | Y64137 | Trim, Top |
|
- | |||||
| 3 | Y68023 | End Cap, R.h. |
|
- | |||||
| 4 | 68024 | End Cap, L.h. |
|
$ 220.68 | |||||
| 5 | 68040 | Trim, Center |
|
- | |||||
| 6 | 66306 | Panel, Lower |
|
- | |||||
| 7 | 66308 | Panel, Control Mounting |
|
$ 8.48 | |||||
| 8 | Y0091554 | Support |
|
- | |||||
| 9 | Y91555 | Support Channel, L.h. |
|
- | |||||
| 10 | 67855 | Seal, Backguard |
|
- | |||||
| 11 | 67997 | Support, Lamp Socket |
|
- | |||||
| 12 | 75036 | Washer, Thrust |
|
- | |||||
| 13 | 75037 | Service Cord |
|
$ 122.14 | |||||
| 14 | 67916 | Bracket, Trim Support |
|
- | |||||
| 15 | 67925 | Plate, Clock Mounting |
|
- | |||||
| 16 | 64144 | Clock, Digital - 60 Cyc. |
|
$ 13.44 | |||||
| 17 | Y64068 | Panel, Control |
|
- | |||||
| 18 | 66939 | Dial, Dual Timer |
|
$ 666.15 | |||||
| 19 | 66938 | Panel, Power Selector |
|
- | |||||
| 20 | Y67947 | Switch, Fluorescent Light |
|
- | |||||
| 21 | DE81-05503A | Tesamol Strip (Replaces: 66726) |
|
$ 42.55 | |||||
| 22 | 66398 | Rear Cover Plate |
|
$ 13.29 | |||||
| 23 | Y63649 | Hand, Delay Timer |
|
- | |||||
| 24 | DE81-08796A | Hand, Microwave Timer (Replaces: 66746) |
|
$ 69.67 | |||||
| 25 | 67791 | Timer, Microwave |
|
- | |||||
| 26 | 67792 | Delay Timer, Microwave |
|
- | |||||
| 27 | 67788 | Switch, Variable Power Selecto |
|
- | |||||
| 28 | Y67944 | Indicator Light |
|
- | |||||
| 29 | 67928 | Lens, Red |
|
- | |||||
| 30 | 67943 | Ring, Retaining |
|
$ 11.98 | |||||
| 31 | 67946 | Bezel, Panel Light Switch |
|
$ 122.59 | |||||
| 32 | WPY0067945 | Lamp, Fluorescent (Replaces: 67945) |
|
$ 29.33 | |||||
| 33 | 66567 | Retainer, Backguard Glass |
|
$ 861.91 | |||||
| 34 | 66163 | Vane & Comb Ass`y |
|
- | |||||
| 35 | DE81-09898A | Insulation, Backguard (Replaces: 66397) |
|
$ 27.34 | |||||
| 36 | Y66512 | Cover, Grille |
|
- | |||||
| 37 | DE81-10083A | Insulation, Temp. Probe (Replaces: 66396) |
|
$ 140.29 | |||||
| 38 | 64411 | Knob, Clock |
|
- | |||||
| 39 | 66941 | Knob, Variable Power Selector |
|
$ 1,016.74 | |||||
| 40 | 74807 | Screw, Tapping |
|
- |
