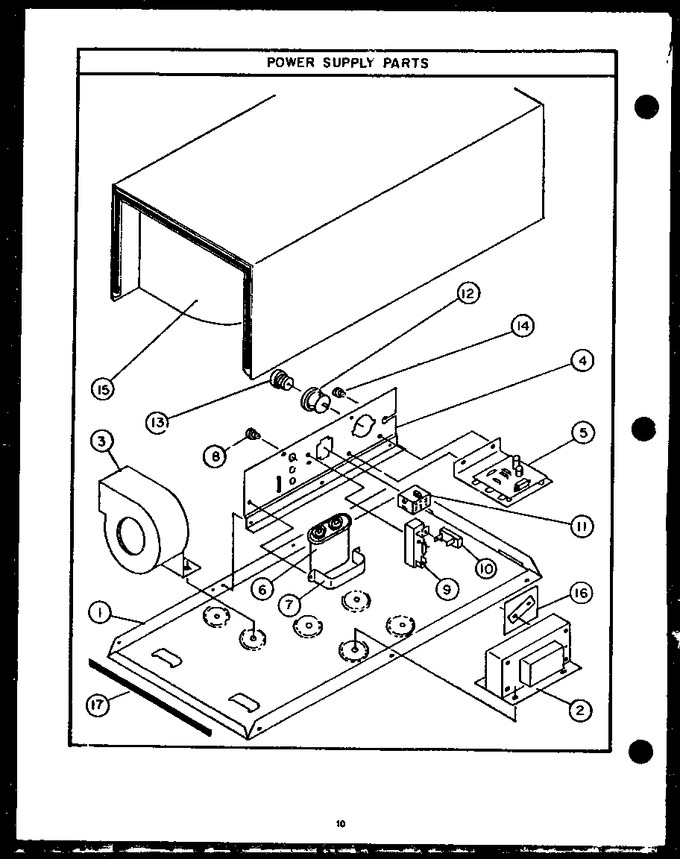

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65424 | Base Power Supply |
|
- | |||||
| 2 | 67845 | Transformer, High Voltage |
|
$ 334.95 | |||||
| 3 | DE81-04278A | Blower Ass`y (Replaces: 66621) |
|
$ 573.44 | |||||
| 4 | 67773 | Panel, Power Supply |
|
- | |||||
| 5 | 67789 | Control, Variable Power |
|
- | |||||
| 6 | 67848 | Capacitor |
|
- | |||||
| 7 | 67793 | Bracket, Capacitor |
|
- | |||||
| 8 | Y67776 | Bushing, Terminal |
|
- | |||||
| 9 | 67787 | Terminal Block, Power Supply |
|
- | |||||
| 10 | 11QBP0235 | Diode (Replaces: 67918) |
|
$ 15.33 | |||||
| 11 | Y67823 | Connector, 9 Pin |
|
- | |||||
| 12 | 67596 | Fuse Holder |
|
- | |||||
| 13 | 67593 | Fuse |
|
- | |||||
| 14 | Y67778 | Bushing, Wiring, Var. Power |
|
- | |||||
| 15 | Y67780 | Cover, Power Supply |
|
- | |||||
| 16 | Y67591 | Thermal Cut - Out Term. Board |
|
- | |||||
| 17 | 67764 | Tesamol Seal |
|
- |
