01 - Control Panel Parts


02 - Electrical Components

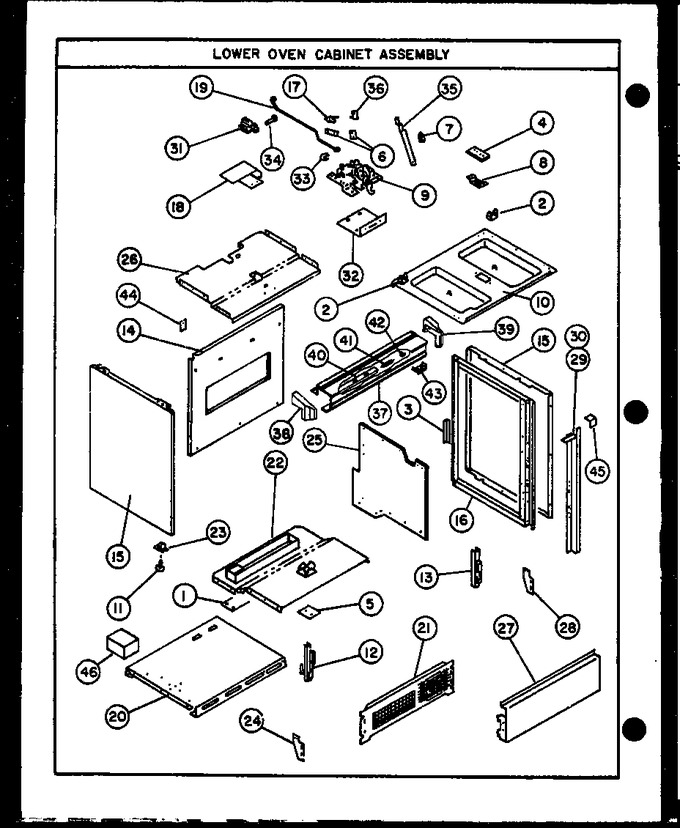

03 - Lower Oven Cabinet Assy


04 - Microwave Parts


05 - Oven Door Parts


06 - Page 1


07 - Power Supply Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-08798A		Baffle - Burner Adjustment   (Replaces: 66344)				$ 113.65
2	DE81-09140A		Hinge, Lower, Main Top   (Replaces: 66374)				$ 50.88
3	66958		Stiffener Angle - Side Frame				$ 8.82
4	Y67879		Cover Plate, Oven Lamp		Appelez-nous	-
5	Y73887		Cover Plate - Orifice		Appelez-nous	-
6	Y0091523		Insulation, Esm		Appelez-nous	-
7	67844		Knob, Door Latch				$ 27.03
8	67880		Housing, Oven Lamp		Appelez-nous	-
9	91532		Latch Assembly, Oven Door		Appelez-nous	-
10	DE81-07333A		Burner Box Bottom   (Replaces: 66379)				$ 29.11
11	76205		Leveling Leg		Appelez-nous	-
12	67155		Oven Hinge, L.h.		Appelez-nous	-
13	67795		Oven Hinge, R.h.		Appelez-nous	-
14	Y66400		Rear Panel		Appelez-nous	-
15	67978V		Main End, Avocado		Appelez-nous	-
15	67978F		Main End, Snow White		Appelez-nous	-
15	67978C		Main End, Dark Copper		Appelez-nous	-
15	67978D		Main End, Gold		Appelez-nous	-
15	67978N		Main End, Almond		Appelez-nous	-
16	67838		Frame, Main End Panel		Appelez-nous	-
17	67919		Switch, Primary Interlock		Appelez-nous	-
18	DE81-03595A		Bracket, Solenoid Support   (Replaces: 66406)				$ 200.93
19	Y65900		Activator Rod - Solenoid/latch		Appelez-nous	-
20	66390		Support Shelf		Appelez-nous	-
21	DE81-10429A		Shield, Power Supply   (Replaces: 66395)				$ 39.32
22	66419		Insulation Retainer, Bottom		Appelez-nous	-
23	R203		Nut, Snap - In   (Replaces: 76204)			Immediately	$ 91.14
24	67359		Bracket, Interlock Mounting, L		Appelez-nous	-
25	DE81-03614A		Insulation Retainer, Sides   (Replaces: 66416)				$ 129.99
26	66418		Insulation Retainer, Top		Appelez-nous	-
27	Y64151		Access Panel, Black		Appelez-nous	-
28	67960		Bracket Interlock Mounting, R.				$ 9.22
29	DE81-09911A		Front Trim. R.h.   (Replaces: 66401)				$ 93.83
30	DE81-09656A		Front Trim, L.h.   (Replaces: 66402)				$ 435.86
31	Y0091393		Solenoid, Latch		Appelez-nous	-
32	66405		Bracket, Latch Mounting		Appelez-nous	-
33	Y0091671		Retainer Ring		Appelez-nous	-
34	Y65665		Cotter Pin		Appelez-nous	-
35	Y66403		Latch Handle		Appelez-nous	-
36	67468		Switch, Latch Solenoid		Appelez-nous	-
37	Y64136		Control Panel		Appelez-nous	-
38	66366		End Cap - L.h.		Appelez-nous	-
39	66365		End Cap - R.h.				$ 16.61
40	66638		Actuator - Spark Ignition				$ 174.04
41	70919		Spring		Appelez-nous	-
42	DD81-03777A		Cam   (Replaces: 66639)				$ 19.40
43	Y66640		Bracket, Switch Mounting - Top		Appelez-nous	-
44	Y0091529		Stop, Spring		Appelez-nous	-
45	65917		Filler Plate		Appelez-nous	-
46	Y00000000		See Note Timer Box		Appelez-nous	-
