Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 70181 Handle, Oven Door   (Replaces: 68150) In-Stock Immediately $ 89.99

2 79978 Spacer Appelez-nous -
3 Y66314 Oven Door Backer Appelez-nous -
4 Y0091604 Washer Appelez-nous -
5 67995 Sub Backer, Oven Door Appelez-nous -
6 Y66316 Oven Door Panel - Black Glass Appelez-nous -
7 0091632 Rivet Appelez-nous -
8 Y0040748 Sub 52039, Latch Plate Appelez-nous -
9 Y67998 Screw, Handle Appelez-nous -
10 Y71914 Screw, S.m. Appelez-nous -
11 77652 Capacitor Appelez-nous -
12 Y0041832 Screw No.8x3/8 Sq. Drive Appelez-nous -
13 67986 Gasket, Oven Door Appelez-nous -
14 66310 Black Glass Panel Appelez-nous -
15 66311 Trim, Frame Special Order $ 488.30

16 70591 Trim, Handle Spacer Appelez-nous -
17 WP488130 Nut K   (Replaces: Y0097886) Special Order $ 6.27

18 66914 Bumper, Glass - Bottom Trim Special Order $ 5.78

19 68115 Bumper, Glass - Top Trim Special Order $ 93.49

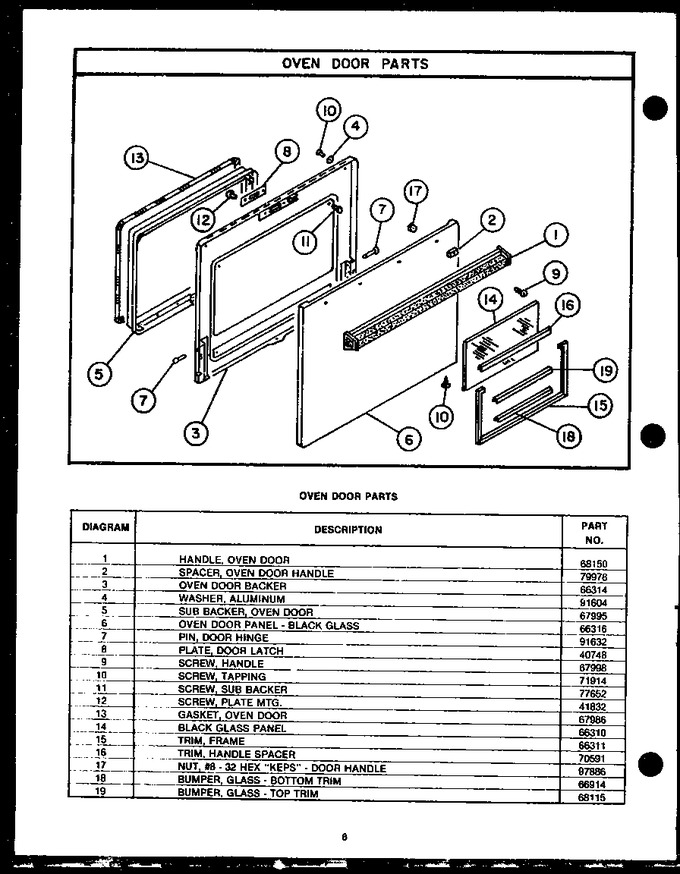

    View Diagram in Separate Window     Print Icon   Print Part List
