01 - Control Panel Parts

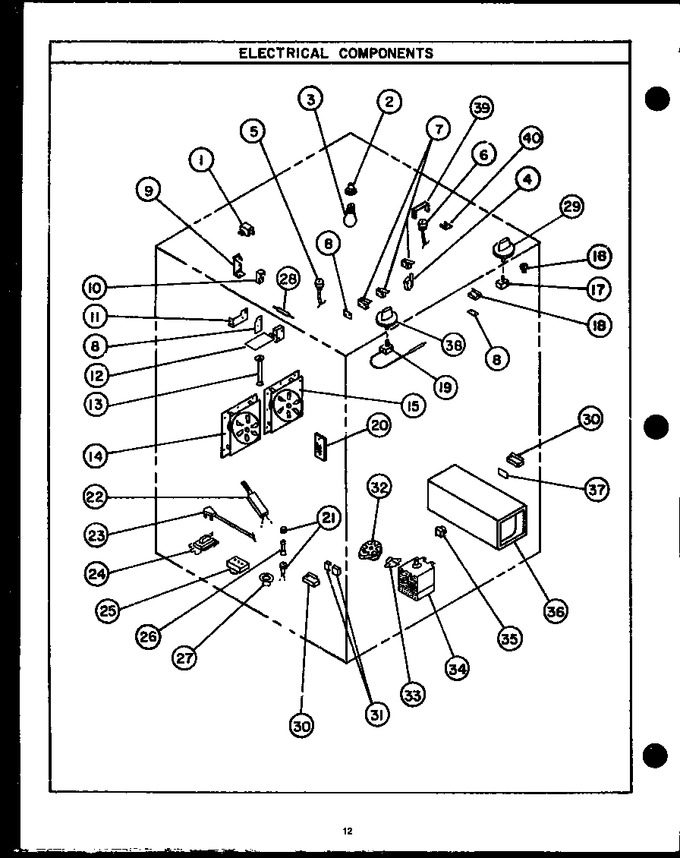

02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Microwave Parts
05 - Oven Door Parts
06 - Page 1
07 - Power Supply Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0091393 | Solenoid, Latch |
|
- | |||||
| 2 | 79394 | Socket, Lamp |
|
- | |||||
| 3 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 16.80 | ||||
| 4 | 67468 | Switch, Latch Solenoid |
|
- | |||||
| 5 | 68867 | Assy`s Electrode - L.h. |
|
$ 99.10 | |||||
| 6 | 68866 | Ass`y. Electrode - R.h. |
|
- | |||||
| 7 | 67919 | Switch, Primary Interlock |
|
- | |||||
| 8 | Y0091523 | Insulation, Esm |
|
- | |||||
| 9 | Y65458 | Bracket - Spark Module |
|
- | |||||
| 10 | 66564 | Spark Module |
|
- | |||||
| 11 | 66318 | Bracket - Sail Switch |
|
- | |||||
| 12 | 66207 | Sail Switch |
|
$ 20.50 | |||||
| 13 | Y66300 | Tubing, Sail Switch Wiring |
|
- | |||||
| 14 | 66338 | Ass`y, Motor And Fan - L.h. Bl |
|
Immediately | $ 536.56 | ||||
| 15 | 66325 | Ass`y, Motor And Fan - R.h. Gr |
|
- | |||||
| 16 | 79426 | Indicator Light |
|
- | |||||
| 17 | Y65421 | Switch Selector |
|
- | |||||
| 18 | 70902 | Switch, Spark Module |
|
- | |||||
| 19 | 66363 | Oven Control |
|
- | |||||
| 20 | 67934 | Junction Block |
|
$ 95.34 | |||||
| 21 | 1N4004 | Flex Tube, 3/4`` X 24`` (Replaces: 70405) |
|
- | |||||
| 22 | Y68043 | Ignitor, Oven |
|
- | |||||
| 23 | 68751 | Supply Cord |
|
$ 25.87 | |||||
| 24 | 71869 | Ballast |
|
- | |||||
| 26 | 72211 | Fuse, 5 Amp |
|
- | |||||
| 27 | DE81-10243A | Receptacle, Flanged Inlet (Replaces: 66387) |
|
$ 260.35 | |||||
| 28 | 65382 | Resistor, 10k-ohm, 2 Watt |
|
- | |||||
| 29 | 60001022 | Knob, Selector (Replaces: 64247) |
|
$ 56.93 | |||||
| 30 | 66360 | Switch, Door Interlock |
|
- | |||||
| 31 | 79978 | Spacer |
|
- | |||||
| 32 | 64287 | Motor, Stirrer |
|
- | |||||
| 33 | 67878 | Thermal Overload Protector |
|
$ 13.50 | |||||
| 34 | 67882 | Magnetron |
|
Immediately | $ 11.07 | ||||
| 35 | Y67782 | Plug, 9 Pin Connector |
|
- | |||||
| 37 | Y67586 | Insulation, Monitor Switch |
|
- | |||||
| 38 | 64248 | Knob - Oven Control |
|
$ 0.03 | |||||
| 39 | 1N4004 | Grounding Bracket, Electrode (Replaces: 70928) |
|
- | |||||
| 40 | 70927 | Mounting Clip, Electrode |
|
- | |||||
| NI | 68260 | Wall Plate, Receptacle |
|
$ 21.20 | |||||
| NI | 68277 | Receptacle 20a, 125 Vac |
|
- |
