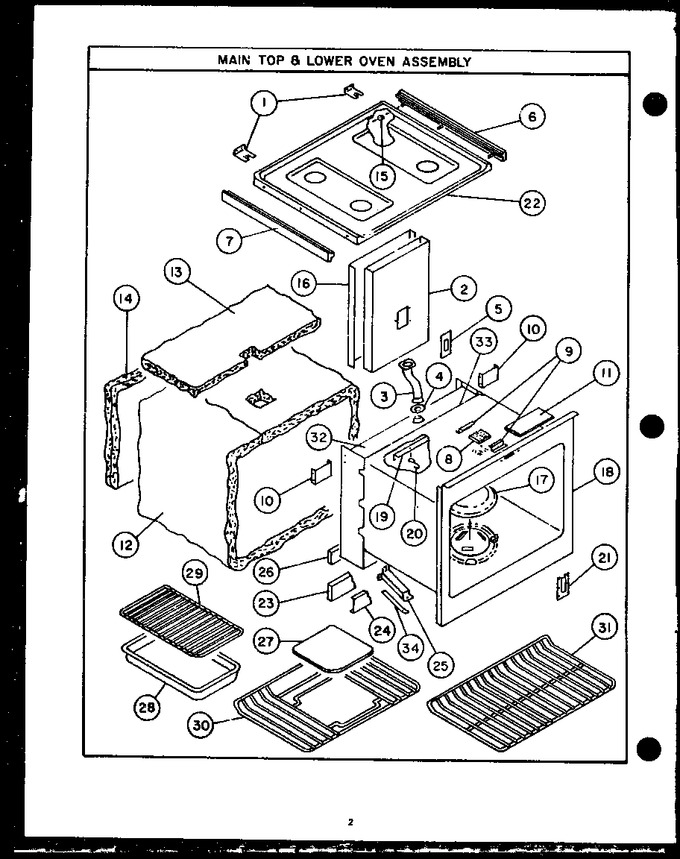

01 - Control Panel Parts
02 - Electrical Components
03 - Lower Oven Cabinet Assy
04 - Microwave Parts
05 - Oven Door Parts
06 - Page 1
07 - Power Supply Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66368 | Hinge, Upper - Main Top |
|
- | |||||
| 2 | Y66427 | Flue, Dilution |
|
- | |||||
| 3 | 66423 | Tube, Oven Vent |
|
- | |||||
| 4 | Y66129 | Gasket, Oven Vent Tube |
|
- | |||||
| 5 | 66421 | Cover - Vent Tube |
|
$ 822.80 | |||||
| 6 | 66370 | Trim, Main Top - R.h. |
|
$ 53.92 | |||||
| 7 | 66369 | Trim, Main Top - L.h. |
|
- | |||||
| 8 | 67985 | Lens, Oven Light |
|
- | |||||
| 9 | 67972 | Clip, Lens |
|
Immediately | $ 10.80 | ||||
| 10 | DE81-10515A | Support Bracket - Oven Tank (Replaces: 66444) |
|
$ 8.47 | |||||
| 11 | DE81-09915A | Insulation - Tank Top, Front (Replaces: 66408) |
|
$ 55.49 | |||||
| 12 | 66411 | Insulation - Oven Tank |
|
- | |||||
| 13 | Y66410 | Insulation - Tank Top, Rear |
|
- | |||||
| 14 | DE81-09916A | Insulation - Tank Back (Replaces: 66409) |
|
$ 54.25 | |||||
| 15 | Y0091593 | Nut |
|
- | |||||
| 16 | 66301 | Insulation - Dilution Flue |
|
$ 20.77 | |||||
| 17 | 67866 | Stirrer Cover |
|
Immediately | $ 14.32 | ||||
| 18 | Y00000000 | See Note Oven Tank |
|
- | |||||
| 19 | 66443 | Angle, Air Deflection |
|
- | |||||
| 20 | 67053 | Clip, Thermostat Bulb |
|
$ 71.06 | |||||
| 21 | Y66134 | Choke, Heat Control Capillary |
|
- | |||||
| 22 | Y64156 | Main Top, Chrome |
|
- | |||||
| 23 | Y66429 | Insulation, Combustion Chamber |
|
- | |||||
| 24 | 66133 | Retainer, Insulation |
|
- | |||||
| 25 | Y66343 | Bracket, Ignitor |
|
- | |||||
| 26 | Y66519 | Insulation, Combustion Chamber |
|
- | |||||
| 27 | 67822 | Cooking Plate, Microwave |
|
Immediately | $ 28.63 | ||||
| 28 | Y63708 | Broiler Pan |
|
- | |||||
| 29 | Y63707 | Broiler Grate |
|
- | |||||
| 30 | 67820 | Oven Rack - Microwave |
|
$ 72.49 | |||||
| 31 | WP314763J | Oven Rack - Regular (Replaces: 67810) |
|
$ 70.11 | |||||
| 32 | Y00000000 | See Note Combustion Chamber |
|
- | |||||
| 33 | Y00000000 | See Note Gasket |
|
- | |||||
| 34 | Y66209 | Shim, Ignitor |
|
- | |||||
| NI | 67909 | Grate, Top Burner |
|
$ 82.99 | |||||
| NI | Y0089314 | Set Of 4 Pcs. 07517400 Grate |
|
- |
