SELECT A DIAGRAM

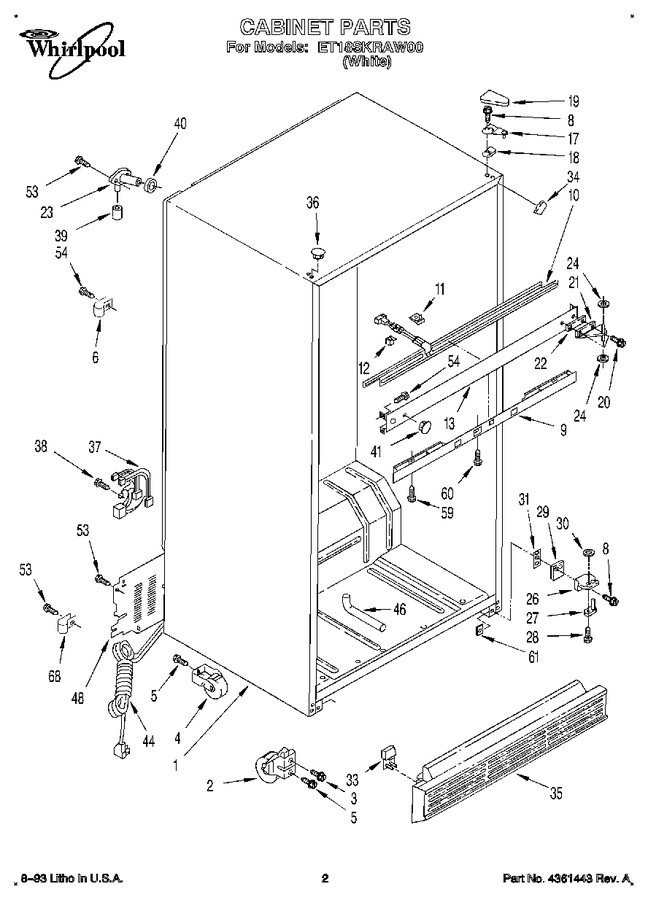

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489393		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 36.15
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.06
8	489327		Screw		Appelez-nous	-
9	2148582		Control, Front Cover		Appelez-nous	-
10	2154064		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Mullion (3)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	1116540		Center Rail (white)		Appelez-nous	-
17	WP2189412		Hinge, Top   (Replaces: 2157593)				$ 103.05
18	1123517		Shim, Hinge Top		Appelez-nous	-
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 17.31
20	WP999367		Screw   (Replaces: 489105)				$ 7.07
21	2147335		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting, Water Tube   (Replaces: 2154080)			Immediately	$ 10.79
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
26	1123378		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	1123379		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1121117		Spacer		Appelez-nous	-
33	1118078		Corner Filler, Grille		Appelez-nous	-
34	1118058		Filler, Wrapper Corner (2) (white)		Appelez-nous	-
35	1118079		Grille		Appelez-nous	-
36	WP2151652		Hole Plug (5) (white)   (Replaces: 2151652)				$ 19.60
37	2153994		Wiring Assy. Intermediate		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.16
39	WP487996		Cap   (Replaces: 487996)				$ 7.43
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 8.94
41	1129062		Hole Plug (white)		Appelez-nous	-
44	937360		Cord, Service		Appelez-nous	-
46	2154118		Fitting, Drain		Appelez-nous	-
48	2160514		Cover, Unit		Appelez-nous	-
53	WP489464		Screw, 8 X 1/2 (7)   (Replaces: 489337)			Immediately	$ 7.05
54	WP489478		Screw   (Replaces: 489242)				$ 6.98
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488725)				$ 6.79
60	WP489174		Screw (2)   (Replaces: 489174)				$ 6.26
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
68	549193		Clamp-cord				$ 12.05

    View Diagram in Separate Window       Print Part List
