SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit

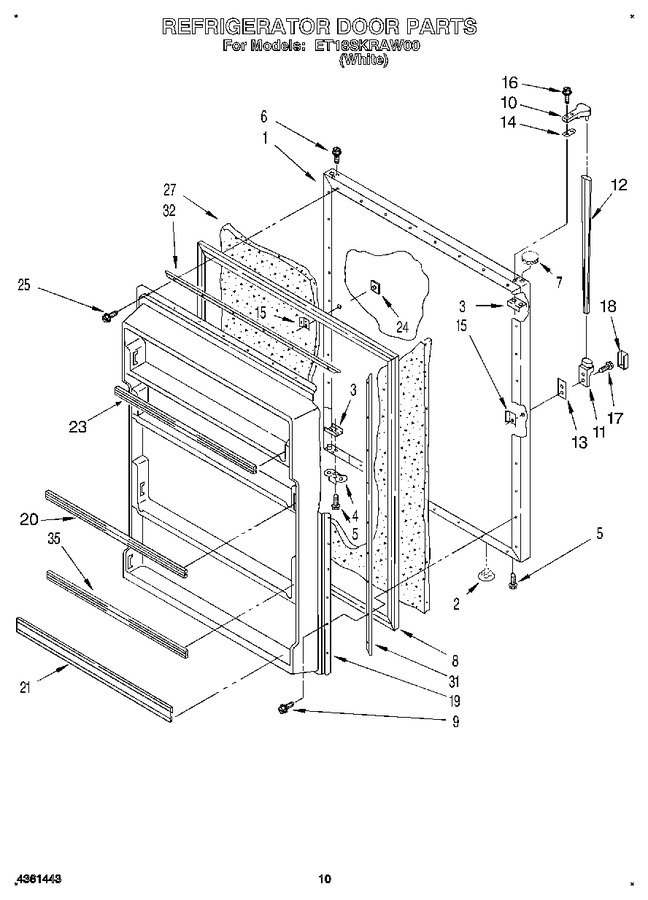

07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116575		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1116578		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (2)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
8	1116734		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 44.55
12	1109166		Handle, Center Blk.		Appelez-nous	-
13	935076		Shim, Handle		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 6.75
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
18	WPW10250570		Screw Cover   (Replaces: 981122)				$ 36.15
19	2160167		Interior Door Panel		Appelez-nous	-
20	2163303		Trim, Door Shelf		Appelez-nous	-
21	2163304		Trim, Door Shelf		Appelez-nous	-
23	2163303		Trim, Door Shelf		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.66
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.01
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
31	1115136		Retainer, Gasket Side (2)		Appelez-nous	-
32	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
35	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
35	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
35	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
35	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
35	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
35	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
35	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
35	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 208.40
35	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 208.40
35	2163305		Trim, Door Shelf		Appelez-nous	-
35	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
35	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
35	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 208.40
35	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
35	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
35	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
35	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
35	350942		Primer White (13 Oz. Spray Can)				$ 80.69
35	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
35	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
35	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
35	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
35	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
35	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
35	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
35	833938		Kit, Terminal Connector				$ 7.26
	1129316		Eckmf90			Immediately	$ 127.81
	LIT2162617		Energy Guide		Appelez-nous	-
	LIT2162795		Use & Care Guide		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT4361443		Parts List		Appelez-nous	-
	1117510		Torx Key				$ 5.84
