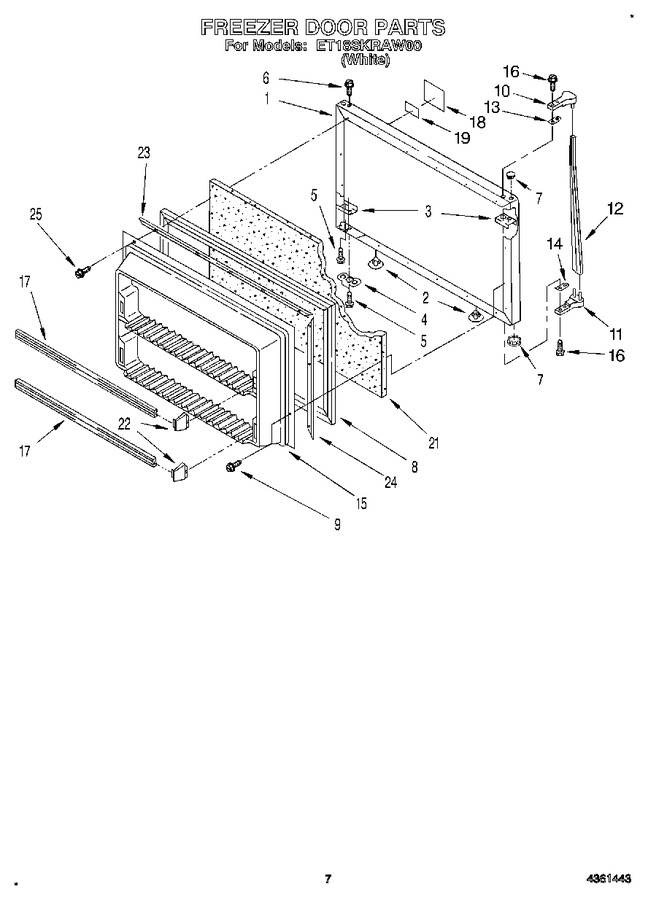

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157708		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 6.98
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.15
7	WP2212648		Hole Plug (white)   (Replaces: 844478)				$ 7.02
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1116735		Door Gasket Magnetic		Appelez-nous	-
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
10	WP2191882		Handle End,   (Replaces: 943184)				$ 53.80
11	2148503		Handle End		Appelez-nous	-
12	2163255		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 6.74
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2163301)				$ 106.56
18	2162781		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing		Appelez-nous	-
22	1106862		Endcap, Trim (4)				$ 5.70
23	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
24	1115138		Retainer, Gasket Side (2)		Appelez-nous	-
25	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.01

    View Diagram in Separate Window       Print Part List
