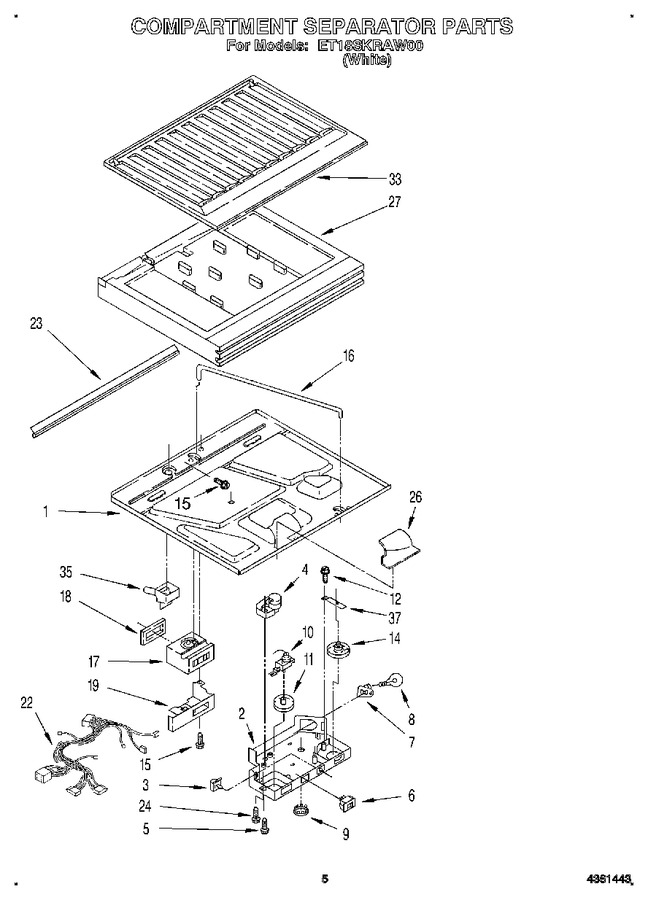

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116561		Bottom, Compartment Separator		Appelez-nous	-
2	2151992		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 36.36
4	WP2183400		Timer, Defrost (10 Hour)   (Replaces: 2162044)			Immediately	$ 78.27
5	WP487353		Screw   (Replaces: 488693)				$ 6.81
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 851067)			Immediately	$ 99.14
8	W11679940		Bulb, Light (2)   (Replaces: 946059)			Immediately	$ 10.17
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 2162293)				$ 188.53
11	1114315		Knob, Thermostat		Appelez-nous	-
12	WP965173		Screw 8 X 1/2   (Replaces: 487415)			Immediately	$ 9.65
14	1114314		Knob, Air Control		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	1116565		Rod, Connecting		Appelez-nous	-
17	2157252		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
22	2153995		Wiring Assembly, Control Box		Appelez-nous	-
23	2159733		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2 (2)   (Replaces: 489048)				$ 7.16
26	1108196		Insulation, Filler		Appelez-nous	-
27	1116569		Insulation, Compartment Separator		Appelez-nous	-
33	1116570		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
