SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional

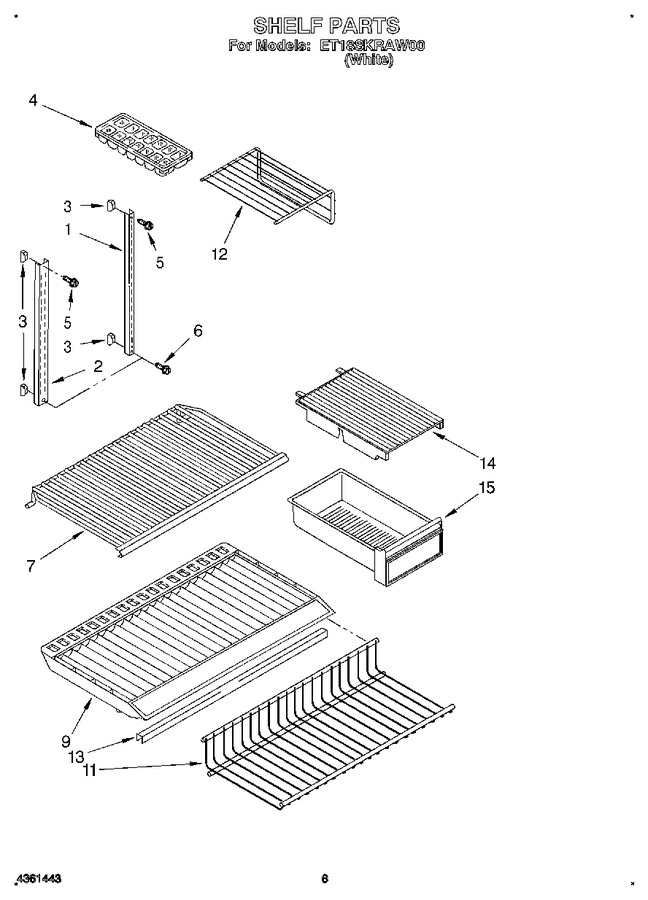

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 26.87
4	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 41.00
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1 (3)   (Replaces: 488163)				$ 6.79
7	2160873		Shelf-full		Appelez-nous	-
9	2160853		Crisper Cover		Appelez-nous	-
11	2163238		Trivet		Appelez-nous	-
12	WPW10401596		Shelf, Ice Trays   (Replaces: 2163232)				$ 74.05
13	WP2172748		Support, Crisper   (Replaces: 1116708)				$ 87.50
14	944739		Cover, Meat Pan		Appelez-nous	-
15	1124976		Pan, Meat		Appelez-nous	-
