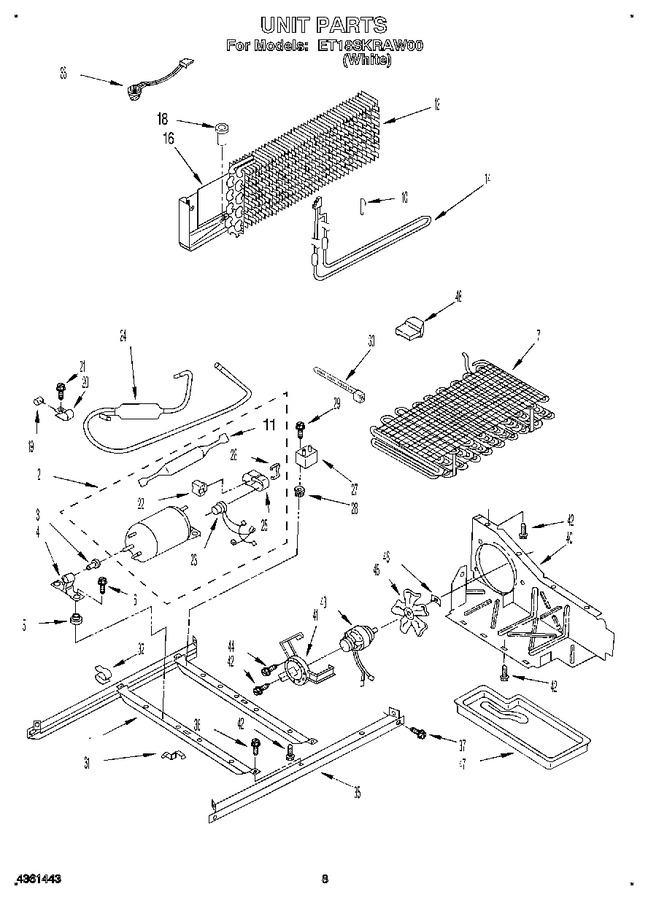

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159747		Unit, Frame		Appelez-nous	-
2	4318241		Compressor (includes Items 11, 22, 23, 25, 26, 27)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor (4)		Appelez-nous	-
6	489334		Screw (4)		Appelez-nous	-
7	2154008		Condenser Assembly		Appelez-nous	-
10	2149120		Support, Heater		Appelez-nous	-
11	W10843121		Drier   (Replaces: 4318249)			Immediately	$ 47.31
12	2153977		Evaporator		Appelez-nous	-
14	2162020		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 6.98
16	2153973		Drain Pan & Heat Shield		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	2149670		Dampener (2)		Appelez-nous	-
20	2159720		Tube Clamp (2)		Appelez-nous	-
21	WP489478		Screw, 8-32 X 1/2 (2)   (Replaces: 489242)				$ 6.98
22	N/A		Relay (see Overload)		Appelez-nous	-
23	2159611		Overload (production (includes Relay))		Appelez-nous	-
23	2154945		Overload (service (includes Relay))		Appelez-nous	-
24	2159732		Muffler		Appelez-nous	-
25	2154452		Cover		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Capacitor   (Replaces: 1118576)			Immediately	$ 52.97
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 12.65
30	215577		Strap				$ 5.75
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149643)			Immediately	$ 43.10
35	1116622		Unit, Rail		Appelez-nous	-
36	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 6.72
37	489340		Screw (4)		Appelez-nous	-
40	2154102		Air, Baffle		Appelez-nous	-
41	2162060		Fan, Mounting Bracket		Appelez-nous	-
42	WP489464		Screw, 8 X 3/8   (Replaces: 489337)			Immediately	$ 7.05
43	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 79.34
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 11.75
45	1115135		Fan Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
47	1116604		Tray, Evaporator		Appelez-nous	-
48	876764		Valve, Access(3/16``)			Immediately	$ 82.22
48	978029		Valve Access (5/8``)				$ 93.85
48	978030		Valve, Access (3/4``)				$ 117.64
48	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
48	1118017		Wedge, Air Baffle		Appelez-nous	-
48	978026		Valve, Access (5/16``)			Immediately	$ 115.28
48	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
48	978028		Valve, Access (1/2)		Appelez-nous	-
