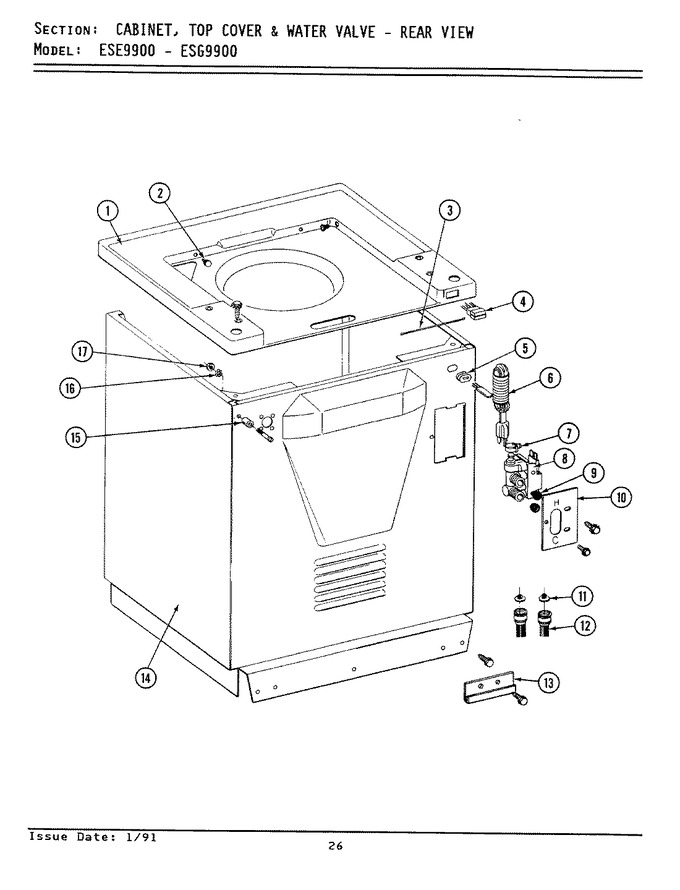

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	214354		Screw	00	Appelez-nous	-
1	207579		Top Cover (white)	00	Appelez-nous	-
2	215247		Bumper For Lid	00	Appelez-nous	-
3	215274		Top Cover Restraint	00	Appelez-nous	-
4	206849		D.c. Wire Harness	00	Appelez-nous	-
4	213076		Pin For Plug	00	Appelez-nous	-
4	215539		Pin Housing	00	Appelez-nous	-
4	206420		Edge Connector Assembly	00	Appelez-nous	-
5	211881		Grommet, Cord	00	Appelez-nous	-
6	315459		Clip, Power Cord	00	Appelez-nous	-
6	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
6	206424		Power Cord	00	Appelez-nous	-
7	WP596669		Hose Clamp   (Replaces: 201575)	00		Immediately	$ 7.56
8	WP206413		Water Valve-dc   (Replaces: 206413)	00		Immediately	$ 247.54
8	Y313561		Screw----na	00			$ 5.27
9	WP96160		Screen, Valve   (Replaces: 214337)	00			$ 10.54
10	215264		Bracket For Water Valve	00	Appelez-nous	-
10	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
11	200961		Screen Washer, Inlet Hose	00	Appelez-nous	-
12	WP76314		Inlet Hose Assy.   (Replaces: 200672)	00			$ 38.79
13	215278		Glide For Washer	00	Appelez-nous	-
14	207207		Cabinet Wht	00	Appelez-nous	-
15	WP67006908		Screw   (Replaces: 215277)	00		Immediately	$ 7.16
15	215276		Bushing	00	Appelez-nous	-
16	310557		Washer	00	Appelez-nous	-
17	WP486255		Hex. Nut, No.8-32   (Replaces: Y052659)	00			$ 5.54
