| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
215733 |
|
Dispensing Cup |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
215721 |
|
Dispensing Cap |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
207538 |
|
Agitator W/lock Screw |
00 |
|
|
$ 102.74 |
|
|
| 4 |
206478 |
|
Screw & Washer For Agitator |
00 |
Appelez-nous
|
- |
|
|
|
| 5 |
211100 |
|
Washer, Cushion |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
Y054867 |
|
Washer, Lock |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
6-2040130 |
 |
Tub Bearing Repair Kit (Replaces: 204013) |
00 |
|
Immediately |
$ 73.68 |
|
|
| 8 |
6-2040130 |
|
Bearing, Tub (Replaces: 200824) |
00 |
|
Immediately |
$ 73.68 |
|
|
| 9 |
211130 |
 |
Liner, Tub Bearing |
00 |
|
|
$ 724.10 |
|
|
| 10 |
201537 |
|
Seal And Spring |
00 |
Appelez-nous
|
- |
|
|
|
| 11 |
204012 |
|
Mounting Stem Repair Kit |
00 |
Appelez-nous
|
- |
|
|
|
| 12 |
202521 |
|
Mounting Stem |
00 |
Appelez-nous
|
- |
|
|
|
| 13 |
211047 |
|
Nut, Clamping (inner Tub) |
00 |
Appelez-nous
|
- |
|
|
|
| 14 |
WP6-0A57420 |
 |
Seal, Agitator Drive Shaft (Replaces: Y0A4298) |
00 |
|
Immediately |
$ 33.64 |
|
|
| 15 |
207830 |
|
Inner Tub W/plug |
00 |
Appelez-nous
|
- |
|
|
|
| 16 |
215081 |
|
Poly Bag |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
206849 |
|
D.c. Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 18 |
WP206418 |
 |
Water Level Switch-digital (Replaces: 206418) |
00 |
|
|
$ 241.77 |
|
|
| 19 |
WP90767 |
 |
Screw (Replaces: Y313559) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 20 |
WP596669 |
 |
Clamp,water Level Swtch Tube (Replaces: 410296) |
00 |
|
Immediately |
$ 7.56 |
|
|
| 21 |
206405 |
|
Outer Tub |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
215258 |
|
Air Dome And Tube |
00 |
Appelez-nous
|
- |
|
|
|
| 23 |
WP285655 |
 |
Clamp, 1-1/16`` (Replaces: 211641) |
00 |
|
Immediately |
$ 7.55 |
|
|
| 24 |
WP213045 |
 |
Drain Hose-tub To Pump (Replaces: 213045) |
00 |
|
Immediately |
$ 43.57 |
|
|
| 25 |
WP616099 |
 |
Clamp, Spray Arm Hose (Replaces: 200900) |
00 |
|
Immediately |
$ 7.03 |
|
|
| 26 |
WP489503 |
 |
Clamp - 15/16`` (Replaces: 205161) |
00 |
|
Immediately |
$ 9.68 |
|
|
| 27 |
214434 |
|
Spout, Deflector |
00 |
|
|
$ 43.09 |
|
|
| 28 |
214495 |
|
Tube, Inlet To Tub |
00 |
|
|
$ 30.61 |
|
|
| 29 |
211210 |
|
Washer,clamping Nut(stainless) |
00 |
|
|
$ 5.84 |
|
|
| 30 |
WPY015666 |
 |
Washer,retaining(center Seal)- (Replaces: Y015666) |
00 |
|
|
$ 6.96 |
|
|
| 31 |
Y015667 |
|
Retaining Ring |
00 |
|
|
$ 8.70 |
|
|
| 32 |
207219 |
 |
Filter, Self-cleaning |
00 |
|
|
$ 58.35 |
|
|

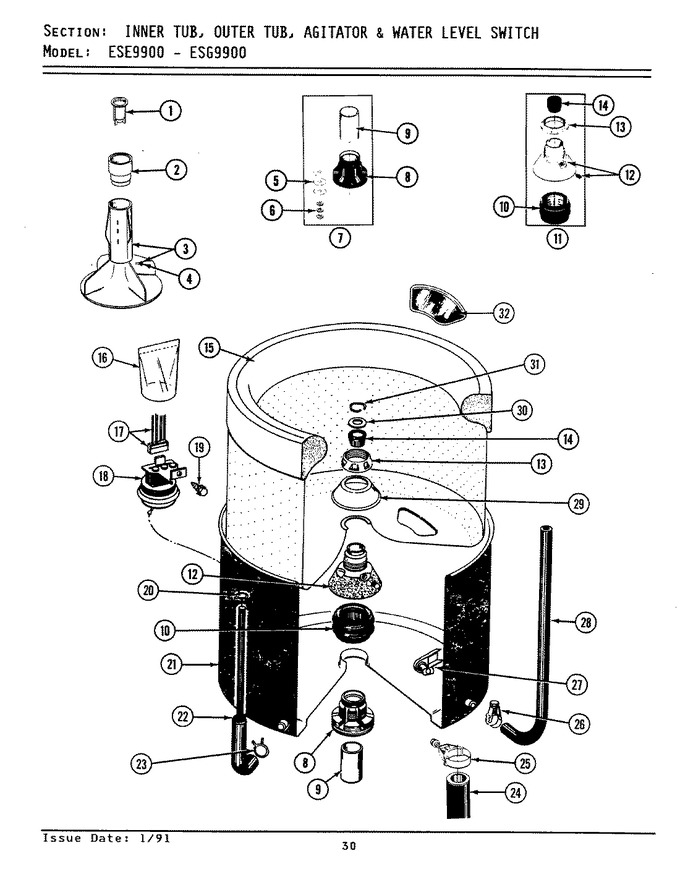

View Diagram in Separate Window
