SELECT A DIAGRAM

01 - Access Pnl & Tub Lgt (ese9900 & Esg9900)


02 - Base (ese9900 & Esg9900)


03 - Base, Pump, Motor & Components


04 - Blower Housing/therm (ese9900 & Esg9900)


05 - Cabinet & Frt Pnl (ese9900 & Esg9900)


06 - Cabinet (ese9900 & Esg9900)


07 - Cabinet, Relays (ese9900 & Esg9900)


08 - Clutch, Brake & Belts (ese9900, Esg9900)


09 - Door, Frt & Cntrl Pnl Ese9900 & Esg9900)


10 - Front View (ese9900 & Esg9900)


11 - Inlet Duct & Heater Assembly (se9900)


12 - Inlet Duct, Gas Valve & Ext. (esg9900)


13 - Motor & Idler Assy. (ese9900 & Esg9900)


14 - Motor & Pump Assy (ese9900 & Esg9900)


15 - Top Cover (ese9900 & Esg9900)


16 - Transmission (ese9900 & Esg9900)


17 - Tub (ese9900 & Esg9900)


18 - Tub Cover (ese9900 & Esg9900)


19 - Tumbler (front & Back)


20 - Tumbler (frt & Back) (ese9900 & Esg9900)

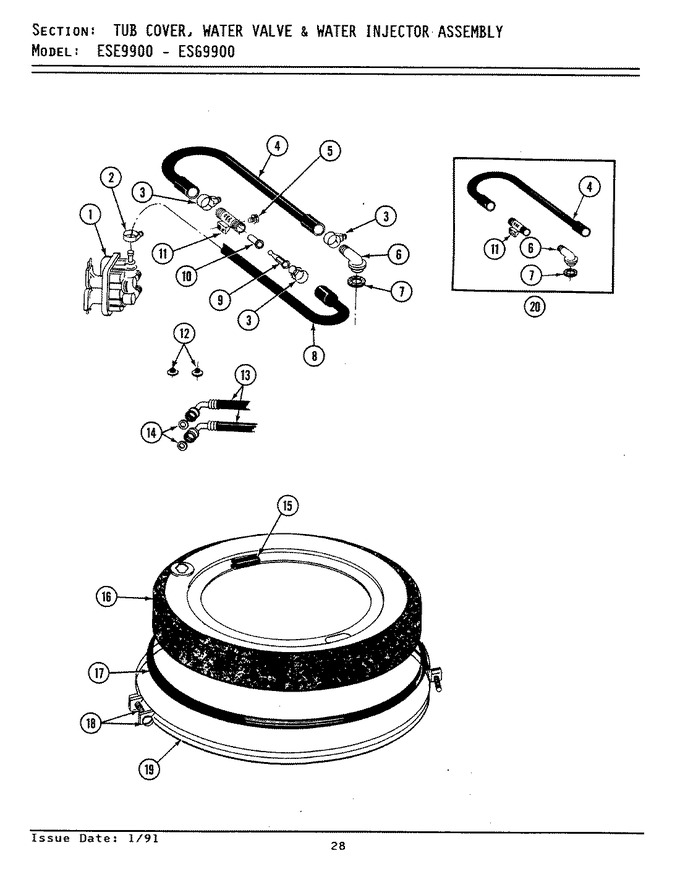

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205613		Water Valve	00		Immediately	$ 103.57
2	WP596669		Hose Clamp   (Replaces: 201575)	00		Immediately	$ 7.56
3	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	00		Immediately	$ 7.56
4	WPY215234		Injector Fill Hose   (Replaces: Y215234)	00			$ 83.54
5	Y310632		Screw	00	Appelez-nous	-
6	215235		Injector Tube	00			$ 16.14
7	215233		Seal For Injector Tube	00			$ 5.84
8	WP213013		Hose, Injector   (Replaces: 213013)	00		Immediately	$ 44.40
9	WP213015		Injector Nozzle   (Replaces: 213015)	00		Immediately	$ 7.29
10	WP216201		Valve For Injector Sub   (Replaces: 213016)	00		Immediately	$ 18.88
11	WP22213057		Sleeve For Injector   (Replaces: 213057)	00			$ 8.06
12	200961		Screen Washer, Inlet Hose	00	Appelez-nous	-
13	WP76314		Inlet Hose Assy.   (Replaces: 200672)	00			$ 38.79
14	Y013783		Gasket, Inlet Hose	00			$ 18.72
15	Y013783		Gasket, Inlet Hose	00			$ 18.72
16	207775		Tub Cover Assy	00	Appelez-nous	-
17	WP211232		Seal   (Replaces: 211232)	00			$ 62.96
18	205529		Nut & Bolt Kit For Tub Clam	00			$ 6.58
19	200846		Clamp - Tub Cover	00			$ 62.11
20	206531		Injector Hose Kit	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
