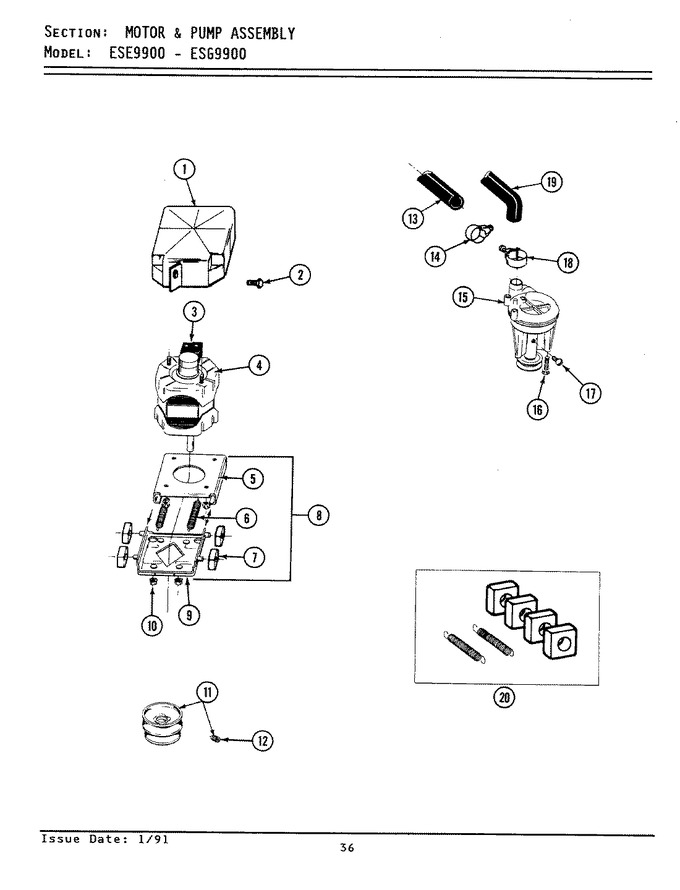

14 - Motor & Pump Assy (ese9900 & Esg9900)


15 - Top Cover (ese9900 & Esg9900)


16 - Transmission (ese9900 & Esg9900)


17 - Tub (ese9900 & Esg9900)


18 - Tub Cover (ese9900 & Esg9900)


19 - Tumbler (front & Back)


20 - Tumbler (frt & Back) (ese9900 & Esg9900)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215098		Shield, Motor	00	Appelez-nous	-
2	WPW10346892		Screw   (Replaces: 213121)	00		Immediately	$ 6.47
3	205133		Motor External Start Switch	00	Appelez-nous	-
3	205132		Switch, Motor Start	00	Appelez-nous	-
3	206505		Switch, Motor Start	00	Appelez-nous	-
4	12002351		Motor (one Speed)   (Replaces: 201805)	00		Immediately	$ 170.98
5	214956		Mount, Motor/upper	00	Appelez-nous	-
6	202718		Tension Springs	00		Immediately	$ 200.35
7	205000		Glide Kit (4 W/poly Lube)   (Replaces: 204998)	00			$ 62.00
8	205999		Motor Mount Assm Complete	00			$ 61.84
9	205908		Lower Motor Mount	00	Appelez-nous	-
10	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	00		Immediately	$ 6.98
11	200816		Pulley, Motor (w/set Screw)	00	Appelez-nous	-
12	Y053241		Set Screw, Pulley	00	Appelez-nous	-
13	WP22001448		Hose   (Replaces: 215365)	00			$ 79.87
14	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	00		Immediately	$ 7.55
15	202203		Pump As Pak	00	Appelez-nous	-
16	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	00			$ 6.98
17	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	00			$ 7.04
18	WP3367052		Clamp, Hose   (Replaces: 202574)	00			$ 7.49
19	WPY212989		Hose, Outer Tub To Pump   (Replaces: Y212989)	00		Immediately	$ 46.51
20	205000		Glide & Spring Kit	00			$ 62.00
