Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 206707 Transmission, Orbital 00 Appelez-nous -
2 207153 Shaft, Agitator (w/spring) 00 Appelez-nous -
3 206713 Gear, Bevel 00 Appelez-nous -
4 WP215581 Spring, Agitator Shaft   (Replaces: 215581) 00 Special Order $ 7.47

5 206685 Block, Torque And Yoke Assembl 00 Appelez-nous -
6 206628 Cover, Transmission 00 Appelez-nous -
7 215417 Screw, Transmission Cover 00 Appelez-nous -
8 215415 Collar, Lower 00 Appelez-nous -
9 WPW10221114 Pinion   (Replaces: 215401) 00 Special Order $ 58.63

10 WP215395 Plate, Clutch   (Replaces: 215395) 00 In-Stock Immediately $ 6.79

11 WP6-2114830 Washer, Splined   (Replaces: 211483) 00 Special Order $ 7.05

12 WPY206629 Pin, Collar   (Replaces: Y206629) 00 Special Order $ 7.88

13 215733 Dispensing Cup 00 Appelez-nous -
14 215721 Dispensing Cap 00 Appelez-nous -
15 207538 Agitator W/lock Screw 00 Special Order $ 102.74

16 206478 Screw & Washer For Agitator 00 Appelez-nous -
17 215410 Center Shaft - Larger 00 Appelez-nous -
18 WP6-2301530 Pulley, Drive   (Replaces: 211059) 00 Special Order $ 178.73

19 WP211089 Lug, Stop   (Replaces: 211089) 00 Special Order $ 10.16

20 WP912618 Screw,stop Lug(center Shaft)   (Replaces: 211375) 00 Special Order $ 6.98

21 WP22003555 Washer, Lock   (Replaces: 211090) 00 Special Order $ 19.26

22 206602 Seal, Lip (center Shaft) 00 Appelez-nous -
23 215394 Washer, Bevel Gear 00 Appelez-nous -
24 206624 Housing, Transmission 00 Appelez-nous -
25 W10841140 Silastic,adh.sealant   (Replaces: Y058700) 00 In-Stock Immediately $ 24.92

26 210690 Seal, Rubber 00 Special Order $ 13.19

27 038228 Lip Seal Tool 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

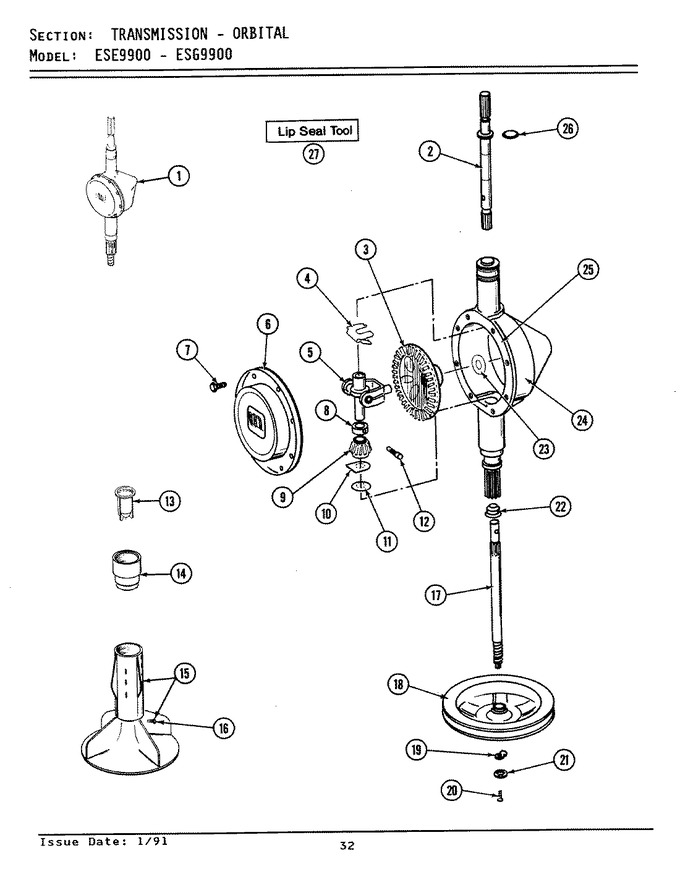

Diagram for ESG9900
