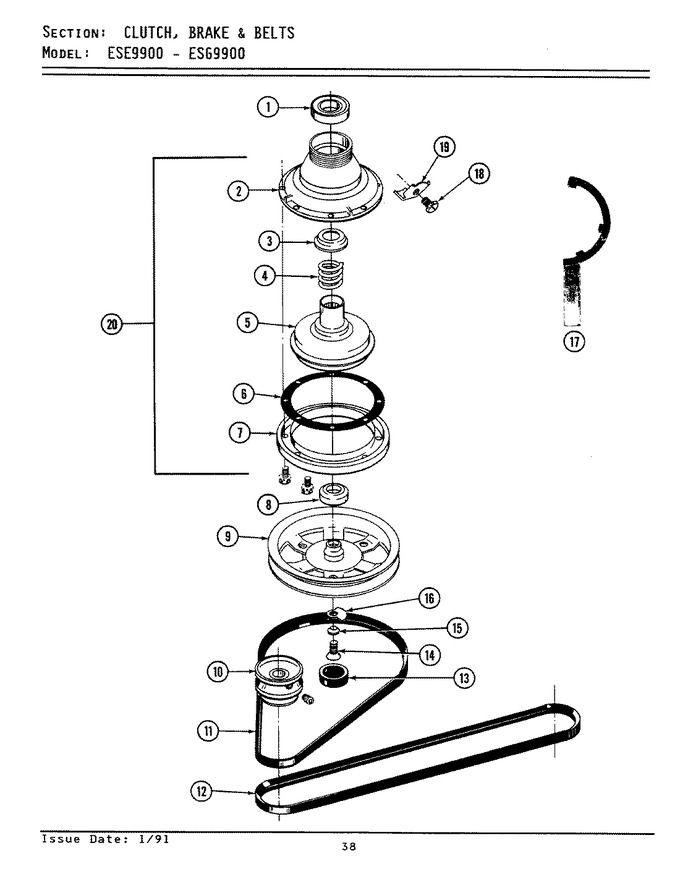

ESG9900 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y200720	Ball Bearing, Radial	Appelez-nous	-
2	211045	Housing, Brake	Appelez-nous	-
3	211039	Retainer, Brake Spring	Appelez-nous	-
4	211041	Spring, Brake	Appelez-nous	-
5	201126	Rotor, Brake (w/facing)	Appelez-nous	-
6	211042	Gasket, Brake Drum	Appelez-nous	-
7	WP8281227	Screw,hex Head (brake Drum) (Replaces: 211000)			$ 9.40
7	211043	Drum, Brake	Appelez-nous	-
8	200835	Bearing, Brake Rotor			$ 30.47
9	WP6-2301530	Pulley, Drive (Replaces: 211059)			$ 178.73
10	200816	Pulley, Motor (w/set Screw)	Appelez-nous	-
10	Y053241	Set Screw, Pulley	Appelez-nous	-
11	12112425	V Belt,drive Pulley (Replaces: 211125)		Immediately	$ 45.06
12	12112425	V Belt, Pump (Replaces: 211124)		Immediately	$ 45.06
13	211038	Cap, Oil Retainer			$ 214.34
14	WP912618	Screw,stop Lug(center Shaft) (Replaces: 211375)			$ 6.98
15	WP22003555	Washer, Lock (Replaces: 211090)			$ 19.26
16	WP211089	Lug, Stop (Replaces: 211089)			$ 10.16
17	Y038315	Tool, Brake Pkg Assy	Appelez-nous	-
18	213326	Screw, Retaining Clip	Appelez-nous	-
19	213325	Clip, Retainer			$ 5.51
20	201190	Brake Assembly	Appelez-nous	-
