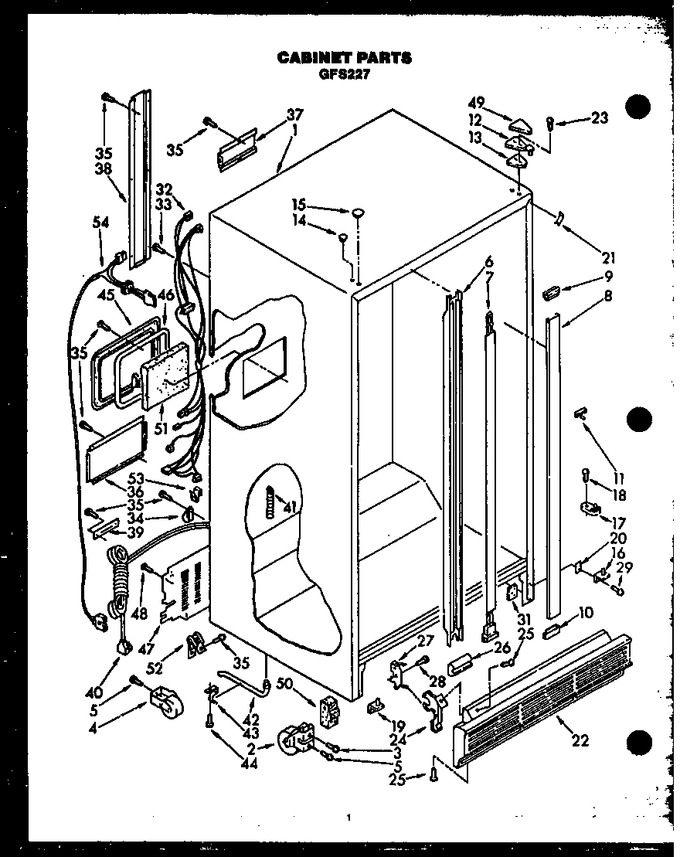

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	0056723		Roller, Cabinet		Appelez-nous	-
3	0056527		Screw,5/16-24x1 1/2		Appelez-nous	-
4	0056722		Roller, Rear		Appelez-nous	-
5	Y0056520		Screw		Appelez-nous	-
6	Y0057159		Rail, Mullion		Appelez-nous	-
7	Y0057081		Heater, Mullion		Appelez-nous	-
8	311126W		Filler Bottom Mullion, White		Appelez-nous	-
8	311126L		Filler Bottom Mullion, Almond		Appelez-nous	-
10	57162L		Bottom Filler, Mullion Rail -		Appelez-nous	-
10	57162W		Bottom Filler, Mullion Rail -		Appelez-nous	-
11	Y0057108		Clip, Ground		Appelez-nous	-
12	0311169		Hinge, Top		Appelez-nous	-
13	Y0311170		Hinge Shim		Appelez-nous	-
14	57047L		Hole Plug - Almond		Appelez-nous	-
14	57047W		Hole Plug - White		Appelez-nous	-
15	57144W		Hole Plug - White		Appelez-nous	-
15	57144L		Hole Plug - Almond		Appelez-nous	-
16	0057150		Hinge, Bottom, Rh		Appelez-nous	-
17	R0181181		Kit,dr Closure   (Replaces: Y0057151)			Immediately	$ 6.47
18	Y0312776		Screw		Appelez-nous	-
19	Y0057152		Hinge, Bottom, Lh		Appelez-nous	-
20	Y0312754		Spacer		Appelez-nous	-
21	56876W		Filler, Corner - White		Appelez-nous	-
21	56876L		Filler, Corner - Almond		Appelez-nous	-
22	Y0312204		Base Grille		Appelez-nous	-
23	Y0311133		Screw		Appelez-nous	-
27	Y0312215		Clip, Grill		Appelez-nous	-
28	Y0056568		Screw		Appelez-nous	-
29	Y0311133		Screw		Appelez-nous	-
31	Y0312755		Top Plate, Bottom Hinge		Appelez-nous	-
32	0311171		Cabinet Harness		Appelez-nous	-
33	WP250830		Screw, 8-32 X 1/2   (Replaces: Y0056541)				$ 7.16
34	Y0056644		Clamp		Appelez-nous	-
35	Y0056568		Screw		Appelez-nous	-
