Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0056545 Screw Appelez-nous -
2 Y56620 Manual,install/opera Appelez-nous -
3 0056533 Tube Clamp Appelez-nous -
4 0056623 Insert, Plastic Tube Appelez-nous -
5 WP628379 Clip, Thermal Fuse   (Replaces: Y0056607) Special Order $ 9.51

6 Y0056611 Dampener Appelez-nous -
7 WPB5705307 Sub 56609, Tube, Plastic   (Replaces: Y0057048) Special Order $ 11.19

8 0056814 Seal, Water Tube Fitting Appelez-nous -
9 56524 Assy Wiring Harness Appelez-nous -
10 0057042 Use R0175029 Appelez-nous -
11 0056592 Nut And Sleeve Assy. Appelez-nous -
12 Y0057006 Connector, Wire Appelez-nous -
13 0056647 Tube, Water Inlet Appelez-nous -
14 Y0311692 Washer Appelez-nous -
15 Y0056601 Tube Assy., Inlet Valve Appelez-nous -
16 0056573 Tube Clamp Appelez-nous -
17 Y0056584 Nut, Inlet Valve Appelez-nous -
18 Y0056948 Cover, Front Appelez-nous -
19 Y0056525 Screw Appelez-nous -
20 0056605 Assy, Mold & Heater Appelez-nous -
21 Y0056604 Knob Appelez-nous -
22 WP628356 Inlet, Water   (Replaces: Y0056596) Special Order $ 46.07

23 WP627843 Ejector, Ice   (Replaces: Y0056600) Special Order $ 75.24

24 WP627843 Ice Stripper   (Replaces: Y0056594) Special Order $ 75.24

25 WP2195914 Support   (Replaces: Y0056595) Special Order $ 94.11

26 WP2315522 Retainer, Thermostat   (Replaces: Y0056598) Special Order $ 9.95

27 WP627985 Thermostat   (Replaces: Y0056603) In-Stock Immediately $ 98.26

28 Y0056555 Screw Appelez-nous -
30 0056556 Use R0186041 Appelez-nous -
31 Y0056597 Arm, Shut-off Appelez-nous -
32 Y0057041 Harness, Icemaker Appelez-nous -
34 WP489128 Screw   (Replaces: Y0056547) Special Order $ 9.79

35 D7824706Q Ice Maker   (Replaces: Y0056504) In-Stock Immediately $ 150.62

39 0311125 Clip Appelez-nous -
40 0312775 Screw Appelez-nous -
41 0311693 Clip, Support Appelez-nous -
42 Y0312777 Bracket Icemaker Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

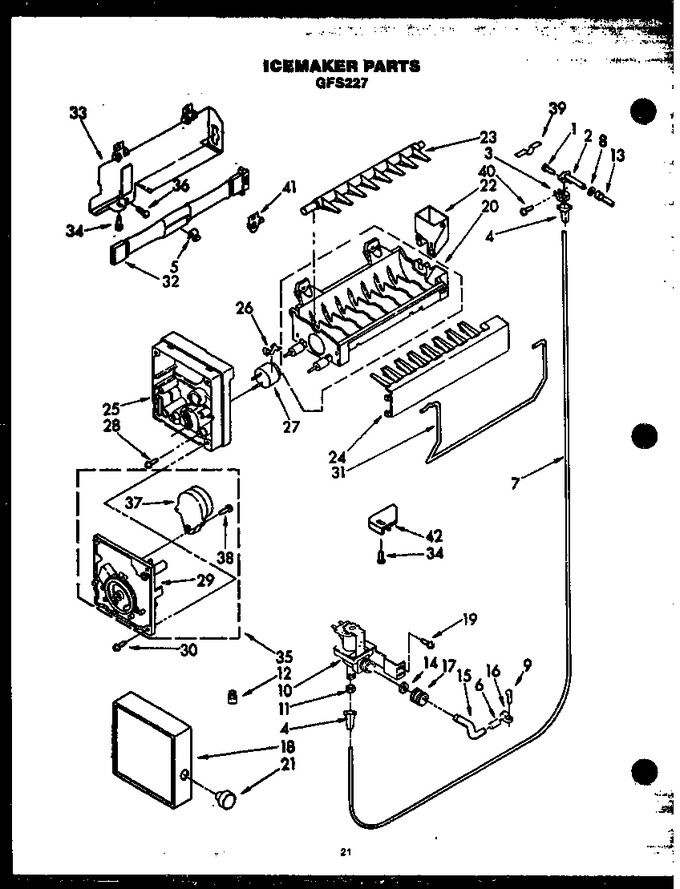

Diagram for GFS227/MN11
