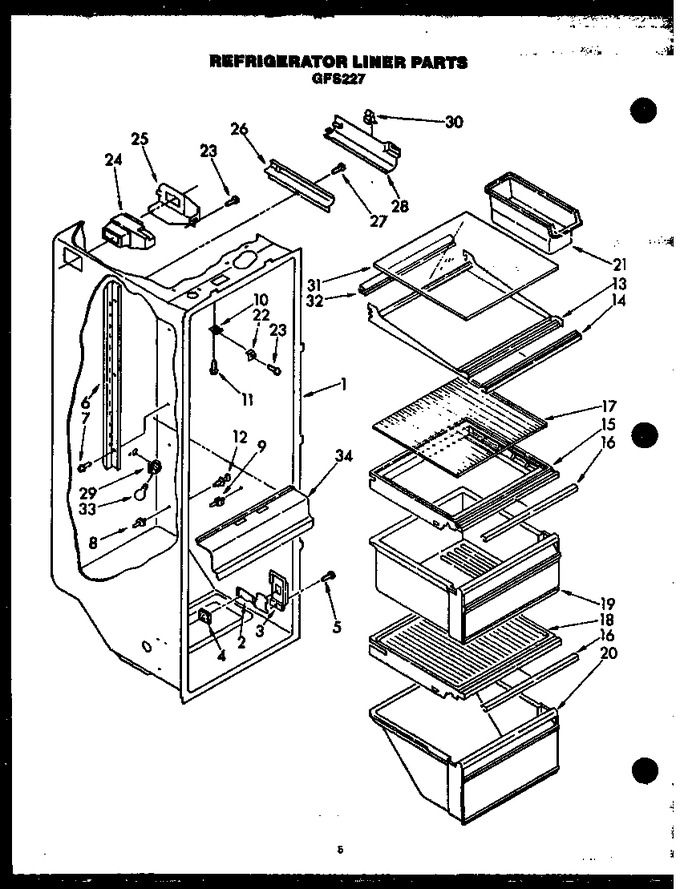

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 57055 | Assy,wiring Harness |
|
- | |||||
| 3 | Y0057054 | Slide, Meat Pan Control |
|
- | |||||
| 4 | Y0057063 | Pad, Foam |
|
- | |||||
| 5 | 57009 | Overlay,panel |
|
- | |||||
| 6 | Y0057086 | Ladder, Shelf |
|
- | |||||
| 7 | 57010 | Overlay,panel |
|
- | |||||
| 8 | Y0057120 | Stud |
|
- | |||||
| 9 | 0312790 | Stud |
|
- | |||||
| 11 | 0311150 | Sub 56545, Screw |
|
- | |||||
| 12 | 0057148 | Stud |
|
- | |||||
| 13 | Y0057128 | Shelf |
|
- | |||||
| 14 | Y0057171 | Trim, Shelf |
|
- | |||||
| 15 | 0057169 | Cover, Crisper |
|
- | |||||
| 16 | Y0057166 | Trim, Crisper Cover |
|
- | |||||
| 17 | 0057126 | Glass, Shelf |
|
- | |||||
| 18 | Y0057167 | Cover, Meat Pan |
|
- | |||||
| 19 | 57170 | Pan, Crisper |
|
- | |||||
| 20 | 57168 | Pan, Meat |
|
- | |||||
| 21 | 56855 | Receptacle,12 Circuit |
|
- | |||||
| 22 | Y0311173 | Bracket Retainer |
|
- | |||||
| 23 | 56505 | Assy,wiring Harness |
|
- | |||||
| 24 | Y0057178 | Air Diffuser |
|
- | |||||
| 25 | 57164 | Cover, Air Diffuser |
|
- | |||||
| 26 | Y0311177 | Cover, Conduit |
|
- | |||||
| 27 | Y0057013 | Sub 56513, Screw |
|
- | |||||
| 28 | Y0311174 | Cover, Wiring |
|
- | |||||
| 29 | 56628 | Manual, Operation |
|
- | |||||
| 30 | Y0057046 | Clip, Air Duct |
|
- | |||||
| 31 | 0057129 | Glass, Shelf |
|
- | |||||
| 32 | Y0057158 | Reflector, Shelf |
|
- | |||||
| 33 | 8009 | Sub 42175, Lamp Oven (Replaces: Y0057030) |
|
Immediately | $ 16.80 | ||||
| 34 | Y0057134 | Lens, Light |
|
- |
