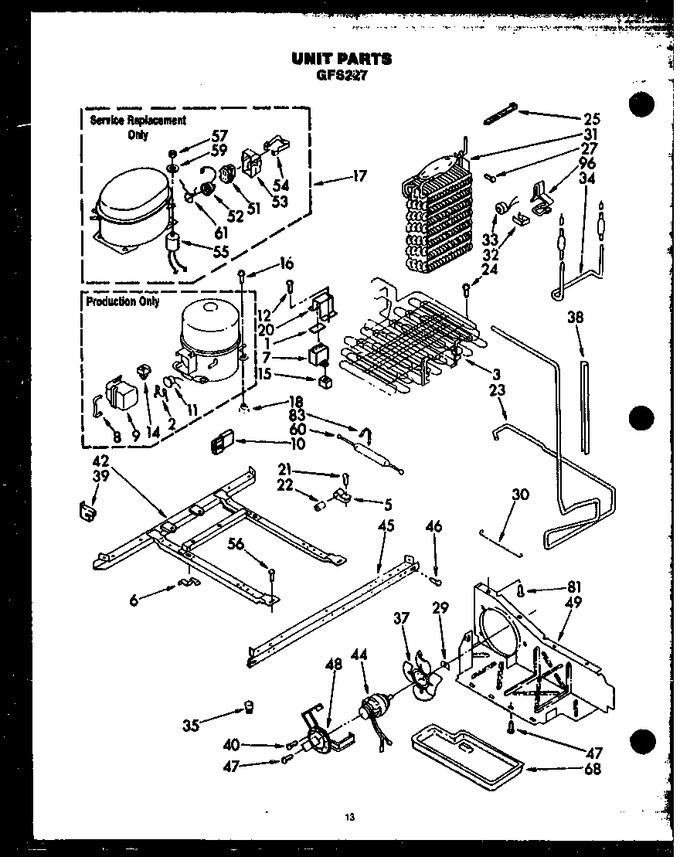

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y0056680		Spring, Overload		Appelez-nous	-
3	Y0057073		Condenser		Appelez-nous	-
5	0056573		Tube Clamp		Appelez-nous	-
6	Y0056589		Clip		Appelez-nous	-
7	0056908		Capacitor		Appelez-nous	-
8	56681		Spring, Case Retaining		Appelez-nous	-
9	Y0056756		Case, Relay		Appelez-nous	-
10	Y0311167		Housing Plug		Appelez-nous	-
11	Y0057130		Overload		Appelez-nous	-
12	Y0056529		Screw		Appelez-nous	-
15	Y0056570		Grommet		Appelez-nous	-
16	Y0056546		Screw		Appelez-nous	-
17	0057007		Compressor		Appelez-nous	-
18	Y0056912		Grommet		Appelez-nous	-
21	Y0056514		Sub 56525, Screw		Appelez-nous	-
22	Y0056574		Dampener		Appelez-nous	-
23	Y0057080		Heat Exchanger		Appelez-nous	-
24	0056523		Sub 56545, Screw		Appelez-nous	-
27	Y0311151		Screw		Appelez-nous	-
29	Y0056506		Speednut		Appelez-nous	-
30	Y0057071		Guard, Fan		Appelez-nous	-
31	Y0057079		Evaporator		Appelez-nous	-
32	57029		Panel,control		Appelez-nous	-
33	WP4387499		Sub 56496, Bimetal Defrost   (Replaces: Y0057124)				$ 108.77
34	Y0057077		Heater, Defrost		Appelez-nous	-
35	Y0057006		Connector, Wire		Appelez-nous	-
37	Y0056730		Fan Blade		Appelez-nous	-
38	Y0057135		Sub 56854, Sleeve		Appelez-nous	-
40	56539		Buzzer,230/50		Appelez-nous	-
42	Y0057070		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: Y0056804)			Immediately	$ 79.34
45	Y0312761		Unit Rail		Appelez-nous	-
46	Y0056528		Screw		Appelez-nous	-
47	0056523		Sub 56545, Screw		Appelez-nous	-
