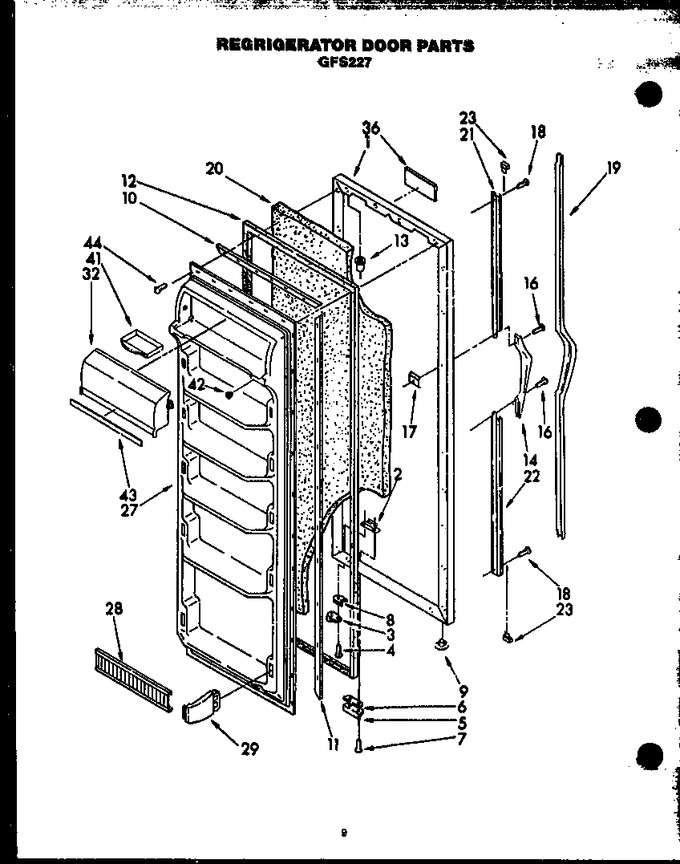

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	57076W		Panel, Outer Door - W		Appelez-nous	-
1	57076L		Panel, Outer Door - L		Appelez-nous	-
2	Y0057060		Tap Plate		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: Y0057153)			Immediately	$ 6.47
4	57018		Assy Bulk Head		Appelez-nous	-
5	Y0057154		Bracket, Door Stop		Appelez-nous	-
6	57061		Assy,wiring Harness		Appelez-nous	-
7	57015		Thermostat				$ 28.33
8	Y0057067		Shim, Door Cam		Appelez-nous	-
9	56583L		Hole Plug - Almond		Appelez-nous	-
9	56583W		Hole Plug - White		Appelez-nous	-
10	Y0312780		Gasket Retainer Top & Bottom		Appelez-nous	-
11	Y0312778		Gasket Retainer Side		Appelez-nous	-
12	0312786		Gasket Refrigerator Door		Appelez-nous	-
13	Y0056571		Cap, Hinge Sleeve		Appelez-nous	-
14	57058		Assy,wiring Harness		Appelez-nous	-
16	56565		Rivet,pop		Appelez-nous	-
17	0056651		Anchor, Screw		Appelez-nous	-
18	0057027		Screw		Appelez-nous	-
19	Y0057141		Insert, Handle		Appelez-nous	-
20	Y0056239		Foam Insulation		Appelez-nous	-
21	57057		Assy,wiring Harness		Appelez-nous	-
22	Y57059		Assy,wiring Harness		Appelez-nous	-
23	57056		Assy,wiring Harness		Appelez-nous	-
27	0312785		Panel Door Inner		Appelez-nous	-
28	Y0057174		Sub 56998, Trim, Door Shelf		Appelez-nous	-
29	Y0057119		Retainer, Door Trim		Appelez-nous	-
32	Y57175		Door, Compartment		Appelez-nous	-
36	Y0057177		Nameplate		Appelez-nous	-
41	Y0056577		Tray, Butter		Appelez-nous	-
43	Y0057155		Trim, Compartment Door		Appelez-nous	-
44	0057020		Sub 56543, Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
