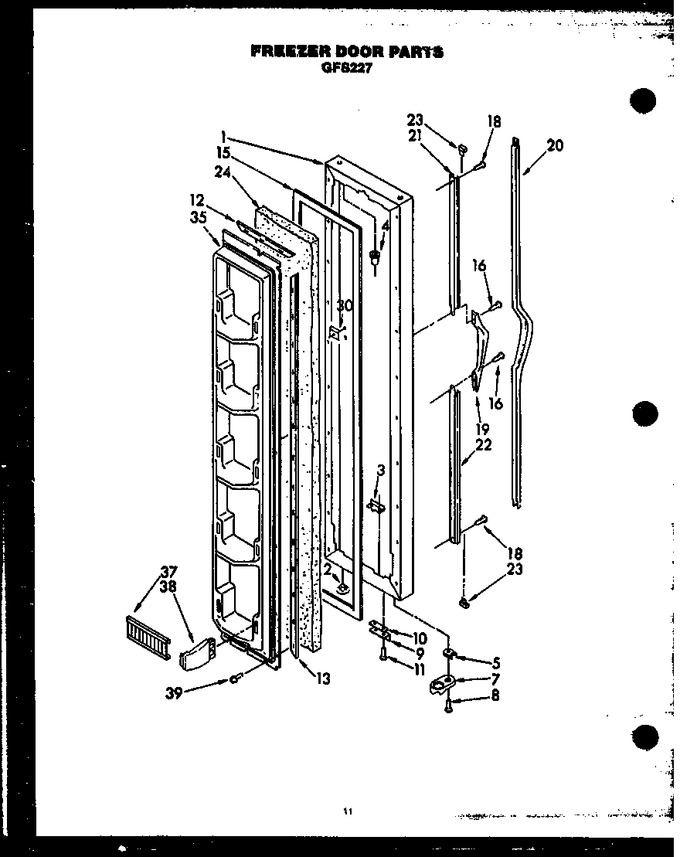

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 57075L | Panel, Fz Door - L |
|
- | |||||
| 1 | 57075W | Panel, Fz Door - W |
|
- | |||||
| 2 | 56583L | Hole Plug - Almond |
|
- | |||||
| 2 | 56583W | Hole Plug - White |
|
- | |||||
| 3 | Y0057060 | Tap Plate |
|
- | |||||
| 4 | Y0056571 | Cap, Hinge Sleeve |
|
- | |||||
| 5 | Y0057067 | Shim, Door Cam |
|
- | |||||
| 7 | R0181181 | Kit,dr Closure (Replaces: Y0057153) |
|
Immediately | $ 6.47 | ||||
| 8 | 57018 | Assy Bulk Head |
|
- | |||||
| 9 | Y0057154 | Bracket, Door Stop |
|
- | |||||
| 10 | 57061 | Assy,wiring Harness |
|
- | |||||
| 11 | 57017 | Bulkhead |
|
- | |||||
| 12 | Y0312779 | Gasket Retainer Top & Bottom |
|
- | |||||
| 13 | Y0312778 | Gasket Retainer Side |
|
- | |||||
| 15 | Y0312787 | Gasket Freezer Door |
|
- | |||||
| 16 | 56565 | Rivet,pop |
|
- | |||||
| 18 | 0057027 | Screw |
|
- | |||||
| 19 | 57058 | Assy,wiring Harness |
|
- | |||||
| 20 | Y0057141 | Insert, Handle |
|
- | |||||
| 21 | 57057 | Assy,wiring Harness |
|
- | |||||
| 22 | Y57059 | Assy,wiring Harness |
|
- | |||||
| 23 | 57056 | Assy,wiring Harness |
|
- | |||||
| 24 | 56630 | Manual, Operation |
|
- | |||||
| 30 | 0056651 | Anchor, Screw |
|
- | |||||
| 35 | Y0312784 | Panel Freezer Door Inner |
|
- | |||||
| 37 | Y0057176 | Sub 56998, Trim, Door Shelf |
|
- | |||||
| 38 | 57121 | Panel,control |
|
- | |||||
| 39 | 0057020 | Sub 56543, Screw |
|
- |
