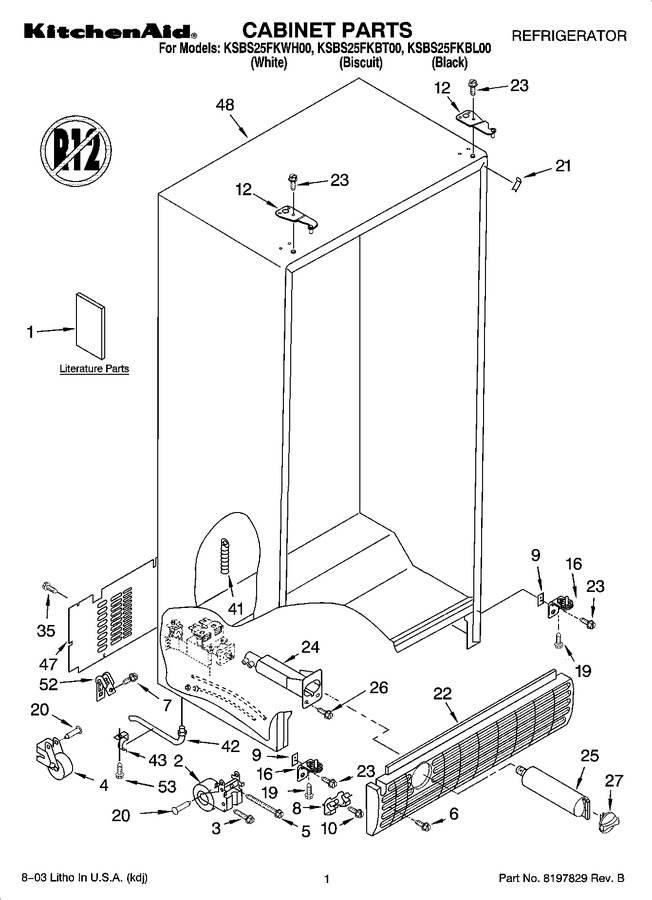

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2221516 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | LIT2219971 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT2214447 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2203007 | Front Roller (2) |
|
- | |||||
| 3 | 3400512 | Bolt |
|
- | |||||
| 4 | 2203008 | Roller (rear) (2) |
|
- | |||||
| 5 | 3400511 | Bolt |
|
- | |||||
| 6 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 8 | 2209558 | Clip |
|
$ 7.85 | |||||
| 9 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 29.89 | |||||
| 10 | 3400515 | Screw |
|
- | |||||
| 12 | 2307008T | Hinge Top (right, Biscuit) (Replaces: 2203124T) |
|
- | |||||
| 12 | 2307008AP | Hinge Top (right, White) (Replaces: 2203124W) |
|
$ 143.66 | |||||
| 12 | 2307008B | Hinge Top (right, Black) (Replaces: 2203124B) |
|
$ 40.76 | |||||
| 12 | 2307007AP | Hinge Top (left, White) (Replaces: 2199935W) |
|
$ 142.23 | |||||
| 12 | 2307007B | Hinge Top (left, Black) (Replaces: 2199935B) |
|
$ 120.07 | |||||
| 12 | 2307007T | Hinge Top (left, Biscuit) (Replaces: 2199935T) |
|
- | |||||
| 16 | 2208137 | Hinge & Cam Assy. |
|
$ 48.43 | |||||
| 19 | W10856122 | Screw (Replaces: 3400103) |
|
$ 6.98 | |||||
| 20 | W11594405 | Pin (Replaces: 981126) |
|
Immediately | $ 16.39 | ||||
| 21 | 2203067T | Filler, Wrapper (biscuit) |
|
- | |||||
| 21 | 2203067B | Filler, Wrapper (black) |
|
$ 30.25 | |||||
| 21 | 2203067W | Filler, Wrapper (white) |
|
- | |||||
| 22 | 2199904W | Grille (white) |
|
- | |||||
| 22 | 2199904B | Grille (black) |
|
$ 49.36 | |||||
| 22 | 2199904T | Grille (biscuit) |
|
- | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 24 | WP2199840 | Housing, Water Filter (Replaces: 2199840) |
|
Immediately | $ 226.80 | ||||
| 25 | EDR5RXD1B | Water Filter (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 27 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186494W) |
|
$ 50.15 | |||||
| 27 | WP2186494T | Cap, Water Filter (biscuit) (Replaces: 2186494T) |
|
$ 10.69 | |||||
| 27 | WP2186494B | Cap, Water Filter (black) (Replaces: 2186494B) |
|
Immediately | $ 47.88 | ||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 41 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 45.81 | ||||
| 42 | 2199954 | Extension Tube |
|
- | |||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 9.67 | |||||
| 47 | 2214385 | Cover, Unit |
|
- | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 12.05 | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 |
