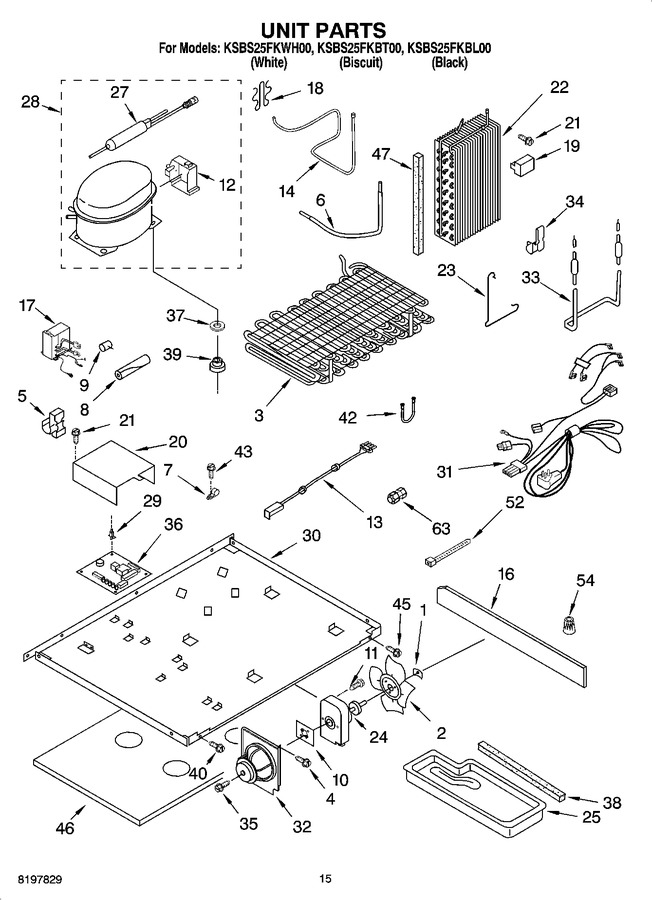

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.04 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2205983 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 5 | 2155658 | Clip, Wire |
|
- | |||||
| 6 | 2214366 | Tube, Condenser To Heat Loop |
|
- | |||||
| 7 | W11456069 | Clamp, Tube (Replaces: 2185788) |
|
Immediately | $ 19.20 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 9 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.56 | |||||
| 10 | 2210750 | Bracket, Insert |
|
- | |||||
| 11 | 8281197 | Screw |
|
- | |||||
| 12 | 2215676 | Cover, Terminal |
|
$ 80.88 | |||||
| 13 | 2214361 | Wire Assembly |
|
- | |||||
| 14 | 2214365 | Tube Suction |
|
- | |||||
| 16 | 2203020 | Extension, Air Baffle |
|
- | |||||
| 17 | W10629033 | Inverter Box (Replaces: 2209324) |
|
Immediately | $ 380.10 | ||||
| 18 | 2163787 | Clip, Compressor Mounting (4) |
|
$ 7.83 | |||||
| 19 | 2208183 | Block, Evaporator |
|
- | |||||
| 20 | 2199929 | Housing, Control Board |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2209611) |
|
Immediately | $ 326.99 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10181323 | Fan, Motor (Replaces: 2206036) |
|
Immediately | $ 272.96 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 101.86 | ||||
| 27 | W10843121 | Drier (Replaces: 2199167) |
|
Immediately | $ 47.31 | ||||
| 28 | W10841139 | Compressor (includes Items 12, & 27) (also Order 876765 Tube Kit) (Replaces: 2208937) |
|
Immediately | $ 433.30 | ||||
| 29 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 16.12 | ||||
| 30 | 2210728 | Unit Mounting Plate |
|
- | |||||
| 31 | 2212052 | Unit, Harness |
|
- | |||||
| 32 | 2208157 | Fan, Motor Bracket |
|
- | |||||
| 33 | WP2210737 | Heater, Defrost (Replaces: 2210737) |
|
Immediately | $ 146.18 | ||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 6.47 | ||||
| 36 | 2221536 | Board, Control |
|
- | |||||
| 37 | 680975 | Washer |
|
- | |||||
| 38 | 4388500 | Gasket (Replaces: 2203876) |
|
$ 81.35 | |||||
| 39 | WP2163786 | Grommet (4) (Replaces: 2163786) |
|
$ 7.16 | |||||
| 40 | 3400515 | Screw |
|
- | |||||
| 42 | 2199806 | Tube, Heat Loop |
|
- | |||||
| 43 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.26 | |||||
| 45 | 3400514 | Screw |
|
- | |||||
| 46 | 2214509 | Insulation, Mounting Plate |
|
- | |||||
| 47 | 2203160 | Side Support |
|
- | |||||
| 52 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 6.95 | |||||
| 54 | 227991 | Wire Connector |
|
- | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 63 | WP4318044 | Union (Replaces: 2196152) |
|
$ 9.32 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- |
