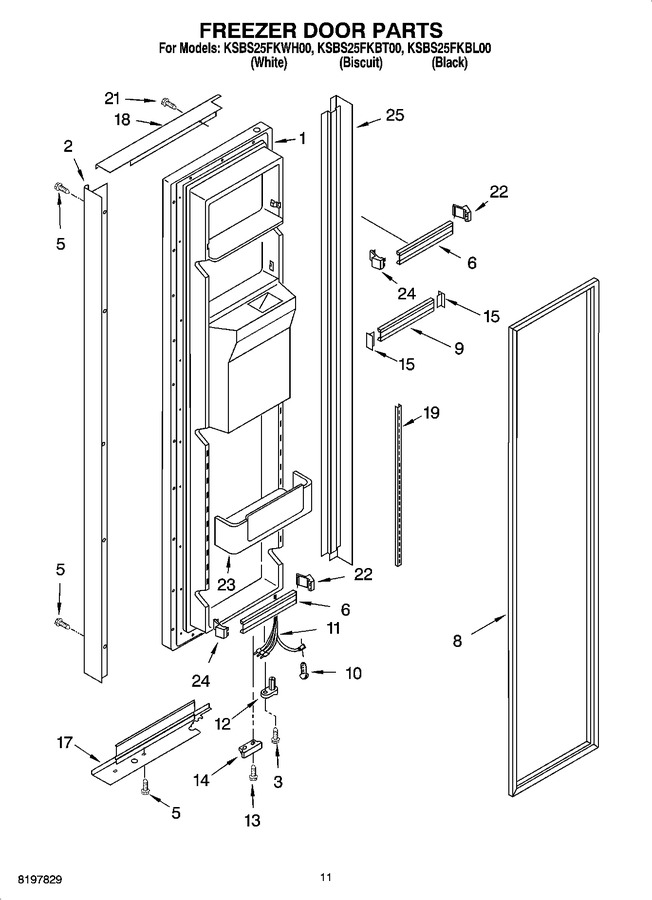

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2214473W Freezer Door (includes Item 8 And Dispenser Front Parts) (white) Appelez-nous -
1 2214473T Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) Appelez-nous -
1 2214473B Freezer Door (includes Item 8 And Dispenser Front Parts) (black) Appelez-nous -
2 2207309T Retainer, Handle (biscuit) Appelez-nous -
2 2207309W Retainer, Handle (white) Appelez-nous -
2 2207309B Retainer, Handle (black) Appelez-nous -
3 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.04

4 WP489491 Screw   (Replaces: 489491) Special Order $ 6.26

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 2199990 Trim, Door Shelf Appelez-nous -
8 2209562 Door Gasket, Magnetic (black) Appelez-nous -
8 2209560 Door Gasket, Magnetic (mist Beige) Appelez-nous -
9 2199991 Trim, Door Shelf Appelez-nous -
10 WP489128 Screw   (Replaces: 488500) Special Order $ 9.79

11 2187667 Wiring Harness, Freezer Door Appelez-nous -
12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182179) In-Stock Immediately $ 5.75

13 WP489483 Screw   (Replaces: 489420) Special Order $ 9.78

14 2210774 Bracket, Door Stop (chrome) Appelez-nous -
14 2214451 Bracket, Door Stop (black) Appelez-nous -
15 WP2156006 Plug-trim   (Replaces: 2156006) In-Stock Immediately $ 10.96

17 2207315T Trim, Door (bottom) (biscuit) Appelez-nous -
17 2207315B Trim, Door (bottom) (black) Appelez-nous -
17 2207315W Trim, Door (bottom) (white) Appelez-nous -
18 2207313T Trim, Door (top) (biscuit) Appelez-nous -
18 2207313W Trim, Door (top) (white) Appelez-nous -
18 2207313B Trim, Door (top) (black) Appelez-nous -
19 2208147 Ladder, Shelf Assembly (2) Appelez-nous -
21 3196180 Screw Appelez-nous -
22 WP2195916K Endcap   (Replaces: 2195916) In-Stock Immediately $ 11.30

23 2199992 Bin, Door (2) Appelez-nous -
24 2195917 Endcap Appelez-nous -
25 2207311B Trim, Door (hinge Side) (black) Appelez-nous -
25 2207311W Trim, Door (hinge Side) (white) Appelez-nous -
25 2207311T Trim, Door (hinge Side) (biscuit) Appelez-nous -
