SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Unit Parts
09 - Unit Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Control Parts
11 - Control Parts

Diagram for 12 - Icemaker Parts, Parts Not Illustrated
12 - Icemaker Parts, Parts Not Illustrated


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 1116793 Cover, Thermistor Special Order $ 14.63

3 WP2188820 Thermistor   (Replaces: 2213442) In-Stock Immediately $ 27.77

4 2209204 Clip, Thermistor Appelez-nous -
5 WP2220377 Air Baffle   (Replaces: 2220377) In-Stock Immediately $ 326.61

9 2181796 Ladder, Shelf Appelez-nous -
10 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98

16 W10777924 Rack, Wine & Egg   (Replaces: 2179404) Special Order $ 21.24

24 2214367 Air Diffuser Assembly Appelez-nous -
29 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 99.14

31 WP2256126 Reservoir   (Replaces: 2196171) Special Order $ 151.97

33 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 16.80

34 2203266 Light Lens Special Order $ 45.86

35 WP2205813 Strap   (Replaces: 2205813) Special Order $ 6.95

37 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

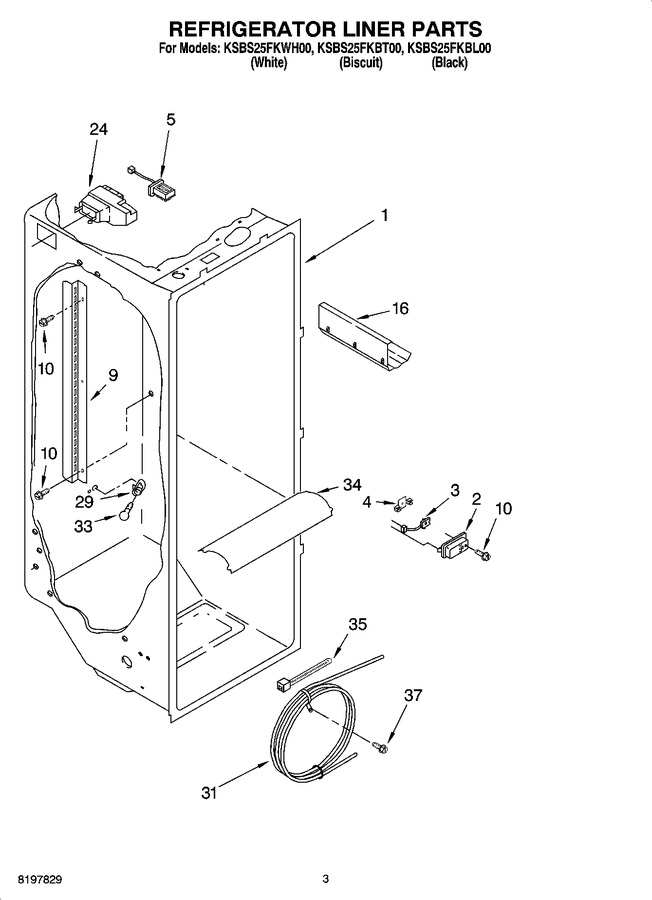

Diagram for KSBS25FKBT00
