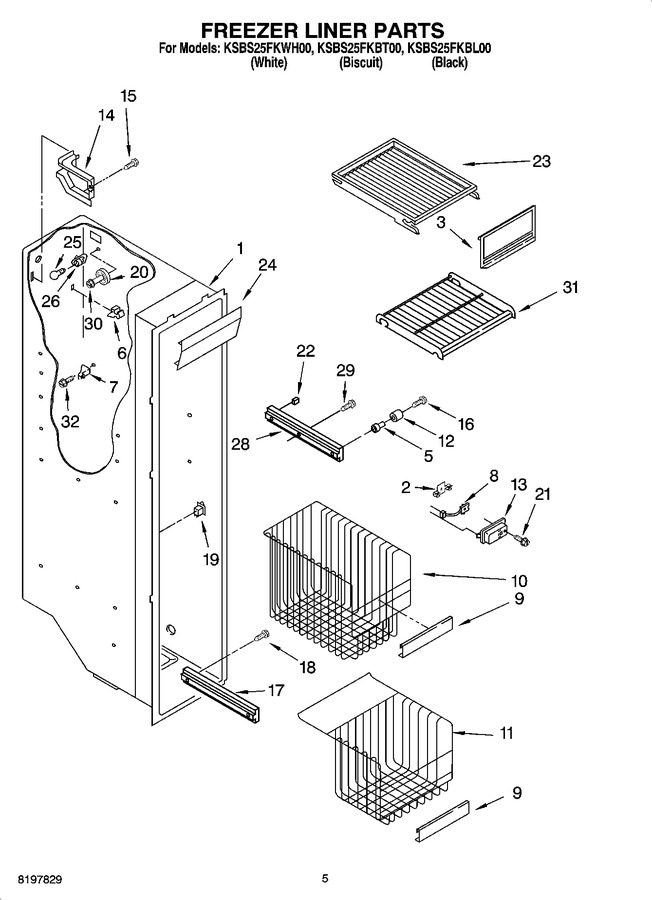

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2209204 | Clip, Thermistor |
|
- | |||||
| 3 | 2199860 | Door, Ice Compartment |
|
- | |||||
| 5 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 9.38 | |||||
| 7 | 2196206 | Support, Stud (4) |
|
- | |||||
| 8 | WP2188820 | Thermistor (Replaces: 2213442) |
|
Immediately | $ 27.77 | ||||
| 9 | 2199867 | Trim, Basket |
|
- | |||||
| 10 | 2199863 | Basket (2) |
|
- | |||||
| 11 | 2199892 | Basket, Shallow |
|
- | |||||
| 12 | 2188212 | Roller |
|
- | |||||
| 13 | 1116793 | Cover, Thermistor |
|
$ 14.63 | |||||
| 14 | 2203111 | Wiring Cover |
|
- | |||||
| 15 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 16 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 9.74 | ||||
| 17 | 2208198 | Slide, Basket (right Side (2)) |
|
- | |||||
| 17 | 2208197 | Slide, Basket (left Side (2)) |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: 489355) |
|
Immediately | $ 12.62 | ||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 34.36 | |||||
| 20 | WP2196483 | Stud (12) (Replaces: 2196483) |
|
$ 9.32 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 22 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 23 | 2209533 | Shelf, Top Compartment |
|
- | |||||
| 24 | 2199965 | Light Lens |
|
- | |||||
| 25 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 26 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 28 | 2002721 | Slide, Container (left Side) |
|
- | |||||
| 28 | 2002720 | Slide, Container (right Side) |
|
- | |||||
| 29 | WPW10272364 | Screw (Replaces: 2003478) |
|
Immediately | $ 9.74 | ||||
| 30 | WP3400806 | Screw (12) (Replaces: 8281158) |
|
$ 6.94 | |||||
| 31 | 2199861 | Shelf |
|
- | |||||
| 32 | W10142289 | Screw (4) (Replaces: 3400893) |
|
$ 8.24 |
