Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2203081 Overlay Appelez-nous -
2 2208141 Retainer, Circuit Board Appelez-nous -
3 2214765 Circuit Board, Interface Appelez-nous -
4 2199717 Control Box Appelez-nous -
5 2203108 Light Lens Appelez-nous -
6 940014 Hole Plug Special Order $ 18.33

17 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 99.14

19 4396822 Light Bulb   (Replaces: 850166) In-Stock Immediately $ 11.64

20 2220781 Control Box Harness Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

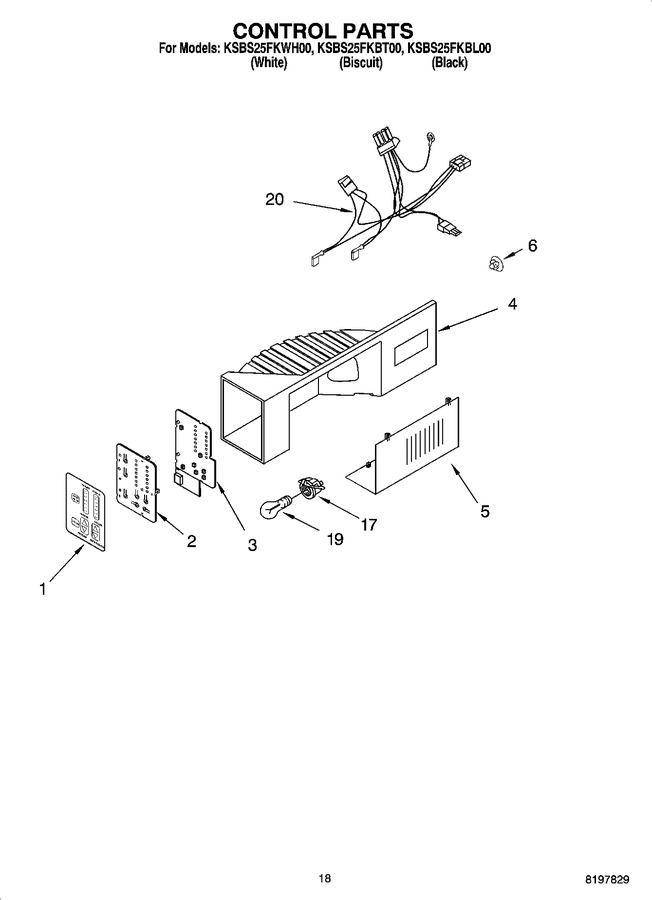

Diagram for KSBS25FKBT00
