Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23004233 Top Cover Appelez-nous -
2 23001006 Door Lock Appelez-nous -
3 23001007 Washer Appelez-nous -
4 23004103 Hinge Appelez-nous -
5 W10304856 Bolt M4x12 Appelez-nous -
6 23004093 Rivet Blind Nut M4 Appelez-nous -
7 23004105 Rivet M4x6 Appelez-nous -
8 23002111 Dispenser Cover   (Replaces: 23001003) In-Stock Immediately $ 221.87

9 23003781 Dispenser Cover Retainer Appelez-nous -
10 23001012 Bolt M4x12 Special Order $ 13.48

12 23002652 Nut M4 Appelez-nous -
13 23002673 Key, Door Lock Special Order $ 1,792.62

14 23001009 Hook, Lock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

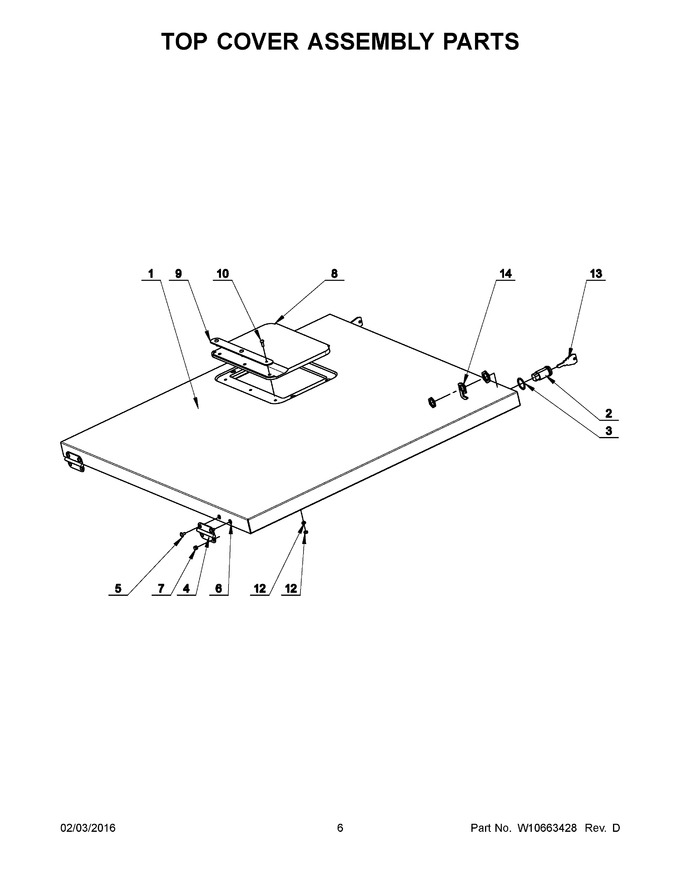

Diagram for MFR60PDCTS
