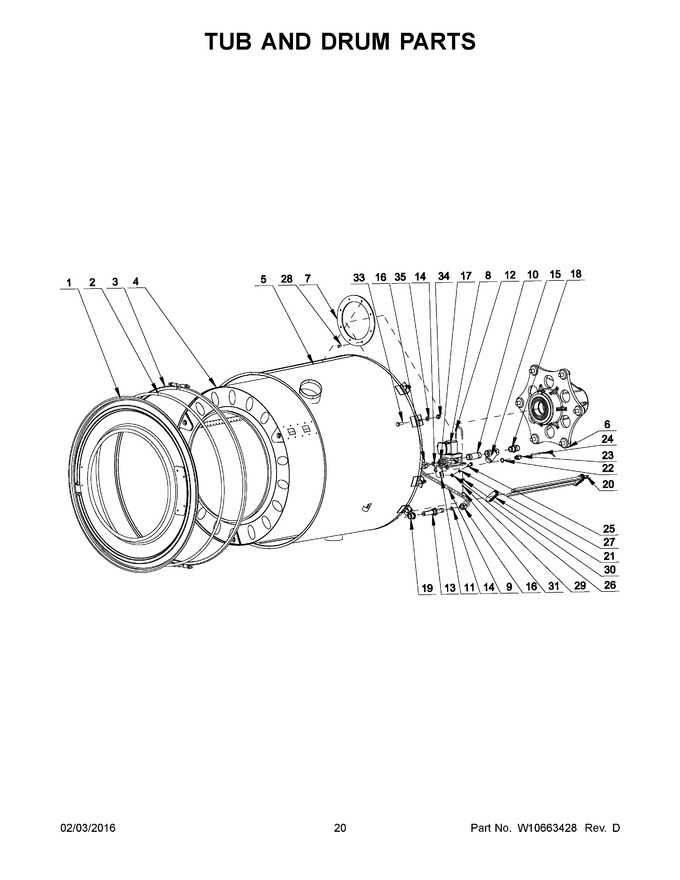

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23004053 | Front Tub Panel Complete |
|
- | |||||
| 2 | 23004248 | Gasket |
|
- | |||||
| 3 | 23004054 | Front Tub Clamp Ring |
|
- | |||||
| 4 | 23004051 | Inner Tub |
|
- | |||||
| 5 | W10667428 | Tub |
|
- | |||||
| 6 | W10667380 | Bearing House Complete |
|
- | |||||
| 7 | 23004249 | Ring |
|
- | |||||
| 8 | WP23004282 | Steam Valve 3/4" With Coil (Replaces: 23004282) |
|
$ 1,192.97 | |||||
| 9 | W10667381 | Tube |
|
- | |||||
| 10 | W10667385 | Tube Ending |
|
- | |||||
| 11 | W10667387 | Steam Valve Plate |
|
- | |||||
| 12 | W10667388 | Fixation Hook |
|
- | |||||
| 13 | 23003169 | Steam Pipe |
|
- | |||||
| 14 | W10667392 | Fastening Cone |
|
- | |||||
| 15 | 23003410 | Steam Filter 3/4 |
|
- | |||||
| 16 | W10667395 | Nut |
|
- | |||||
| 17 | 23003171 | Adapter |
|
- | |||||
| 18 | 23003411 | Pipe Nipple |
|
- | |||||
| 19 | 23002480 | Plug (3/4) |
|
- | |||||
| 20 | WPW10399309 | Heating Element - 3000 Watt (Replaces: W10399309) |
|
$ 174.01 | |||||
| 21 | 23001594 | Heating Element Hole Plug |
|
- | |||||
| 22 | 23002179 | Washer |
|
- | |||||
| 23 | 23003807 | Thermostat Sensor Holder |
|
- | |||||
| 24 | 23003964 | Temperature Sensor |
|
- | |||||
| 25 | 23001264 | Bolt M8x20 |
|
- | |||||
| 26 | 23003769 | Washer M8 |
|
- | |||||
| 27 | 23001265 | Washer M8 |
|
- | |||||
| 28 | 23004114 | Bolt, M6 X 16 |
|
- | |||||
| 29 | 20007283 | Washer M6 (Replaces: 23002440) |
|
$ 504.91 | |||||
| 30 | 23003012 | Washer M6 |
|
- | |||||
| 31 | 23003773 | Nut M6 |
|
- | |||||
| 33 | 23002987 | Bolt M10x30 |
|
- | |||||
| 34 | 23001241 | Nut M10 |
|
$ 2,647.47 | |||||
| 35 | 23003788 | Washer M10.5 |
|
- | |||||
| 20A | W10667449 | Heating Element-2000 Watt |
|
- | |||||
| 8A | W10553970 | Steam Valve 3/4" Without Coil |
|
- | |||||
| 8B | W10286316 | Steam Valve (coil) |
|
- |
