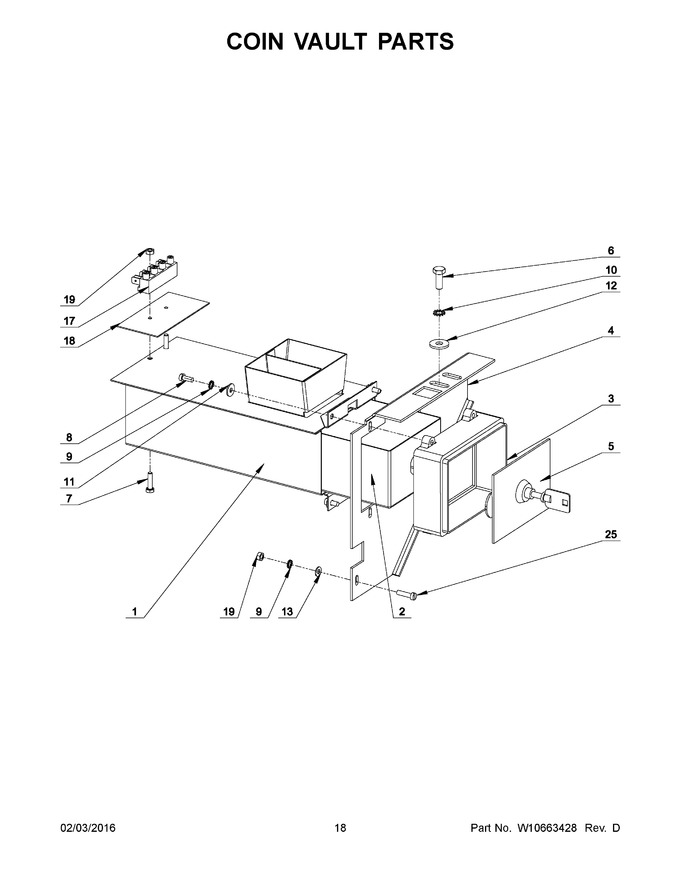

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10666589		Coin Vault		Appelez-nous	-
2	23004128		Coin Box Vault		Appelez-nous	-
3	23003775		Vault Front Bezel		Appelez-nous	-
4	23003776		Coinbox Support		Appelez-nous	-
5	W10666590		Coin Vault Cover		Appelez-nous	-
6	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
7	23004095		Bolt M4x16		Appelez-nous	-
8	23002423		Screw M4x10		Appelez-nous	-
9	23002950		Washer, Lock M4		Appelez-nous	-
10	23002756		Lockwasher, M6		Appelez-nous	-
11	23002504		Washer M4		Appelez-nous	-
12	23003012		Washer M6		Appelez-nous	-
13	23002438		Washer M4.3		Appelez-nous	-
17	23001113		Terminal Block		Appelez-nous	-
18	23001115		Terminal Block Insulation		Appelez-nous	-
19	23003666		Nut M4		Appelez-nous	-
25	23001012		Bolt M4x12				$ 13.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10286299		Emergency Stop Interconnection		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
