SELECT A DIAGRAM

01 - Cover Sheet


02 - Base Frame Parts


03 - Cabinet Parts


04 - Top Cover Assembly Parts


05 - Door Lock Assembly Parts


06 - Door Parts-prior To Series 16


07 - Door Parts-starting With Series 16


08 - Soap Box, Drain And Hose Assembly Parts


09 - Control Panel Parts


10 - Coin Vault Parts


11 - Tub And Drum Parts

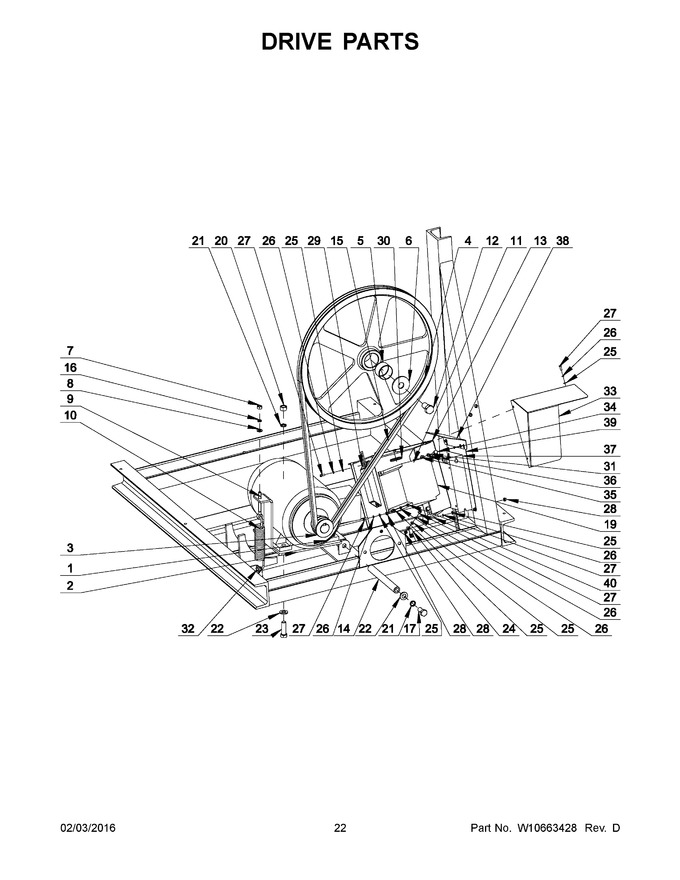

12 - Drive Parts


13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004082		Motor, Drive		Appelez-nous	-
2	23004250		Mounting Plate, Motor		Appelez-nous	-
3	23004251		V-pulley, Motor		Appelez-nous	-
4	23004252		V-pulley, Drum		Appelez-nous	-
5	23004253		Tolerance Ring, Drum Pulley		Appelez-nous	-
6	23004254		Washer M16		Appelez-nous	-
7	23003766		Nut M8		Appelez-nous	-
8	23003769		Washer M8		Appelez-nous	-
9	23004255		Bolt M8x80		Appelez-nous	-
10	23004256		Spring		Appelez-nous	-
11	23004092		Nut M6		Appelez-nous	-
12	23002278		Bolt M16x30		Appelez-nous	-
13	23004260		Bracket, Frequency Inverter		Appelez-nous	-
14	23004257		Motor Pin		Appelez-nous	-
15	23001287		V-belt (xpz X 1950)		Appelez-nous	-
16	23002358		Washer, Lock M8		Appelez-nous	-
17	23001418		Bolt M12x25		Appelez-nous	-
19	W10415771		Frequency Inverter 1phase 240v		Appelez-nous	-
20	23003676		Nut M12		Appelez-nous	-
21	23002658		Washer M12		Appelez-nous	-
22	23002657		Washer M13		Appelez-nous	-
23	23003079		Bolt M12x40		Appelez-nous	-
24	23004021		Clamp, Cable		Appelez-nous	-
25	23002438		Washer M4.3		Appelez-nous	-
26	23002400		Washer M4		Appelez-nous	-
27	23001609		Bolt M4x12		Appelez-nous	-
28	23004093		Rivet Blind Nut M4		Appelez-nous	-
29	23004024		Brake Resistor 1phase 240v		Appelez-nous	-
30	23001742		Cable Bushing		Appelez-nous	-
31	23002834		Grommet				$ 2,242.58
32	23004258		Bushing		Appelez-nous	-
33	W10667488		Cover, Frequency Inverter		Appelez-nous	-
34	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
35	23003778		Washer, Lock		Appelez-nous	-
36	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
37	W10667489		Filter		Appelez-nous	-
38	W10667490		Filter Cover		Appelez-nous	-
39	W10667491		Filter Holder		Appelez-nous	-
40	23001361		Bolt M4x10		Appelez-nous	-
19A	W10667458		Frequency Inverter 3phase 400v		Appelez-nous	-
19B	W10427108		Fan,inverter Freq		Appelez-nous	-
29A	W10667487		Brake Resistor 3phase 400v		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10667453		Motor Cable		Appelez-nous	-
