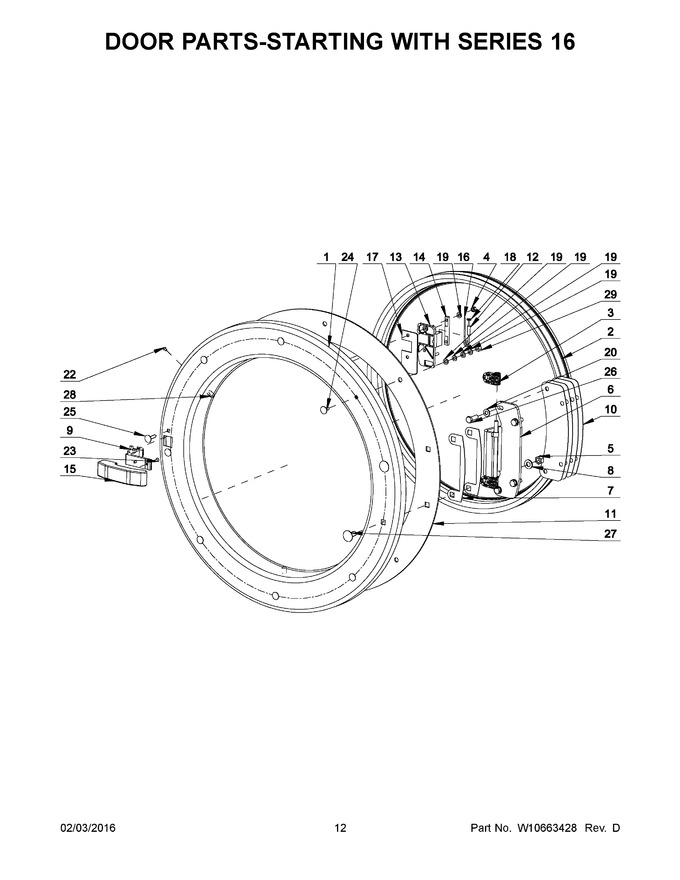

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10285292 | Door Complete |
|
- | |||||
| 2 | W10664567 | Door Gasket |
|
- | |||||
| 3 | W10285294 | Hinge Block |
|
- | |||||
| 4 | 23002280 | Nut M6 |
|
- | |||||
| 5 | 23003048 | Nut M10 |
|
- | |||||
| 6 | W10495940 | Door Hinge |
|
- | |||||
| 7 | W10664569 | Hinge Block Shim |
|
- | |||||
| 8 | W10285300 | Washer M10 |
|
- | |||||
| 9 | 23003979 | Door Handle |
|
- | |||||
| 10 | 23004237 | Door Hinge Washer |
|
- | |||||
| 11 | W10664571 | Door Reinforcement |
|
- | |||||
| 12 | W10304861 | Tube |
|
- | |||||
| 13 | 23001370 | Handle, Door Block With Pin |
|
- | |||||
| 14 | 23001168 | Shaft, Lever |
|
- | |||||
| 15 | 23004239 | Door Handle |
|
- | |||||
| 16 | 23001169 | Spring, Door Handle |
|
- | |||||
| 17 | 23003420 | Spacer |
|
- | |||||
| 18 | 23002499 | Washer |
|
- | |||||
| 19 | 23002424 | Washer M6.4 |
|
- | |||||
| 20 | 23001608 | Washer M8.4 |
|
- | |||||
| 22 | 8173901 | Screw (Replaces: 23003811) |
|
- | |||||
| 23 | 23004113 | Bolt M4x12 |
|
- | |||||
| 24 | W10664572 | Bolt M6x16 |
|
- | |||||
| 25 | W10285296 | Bolt M6x25 |
|
- | |||||
| 26 | 23003419 | Screw M8x24 |
|
- | |||||
| 27 | W10285298 | Bolt M10x25 |
|
- | |||||
| 28 | 23004238 | Nut M4 |
|
- | |||||
| 29 | 23002392 | Nut M6 |
|
- |
