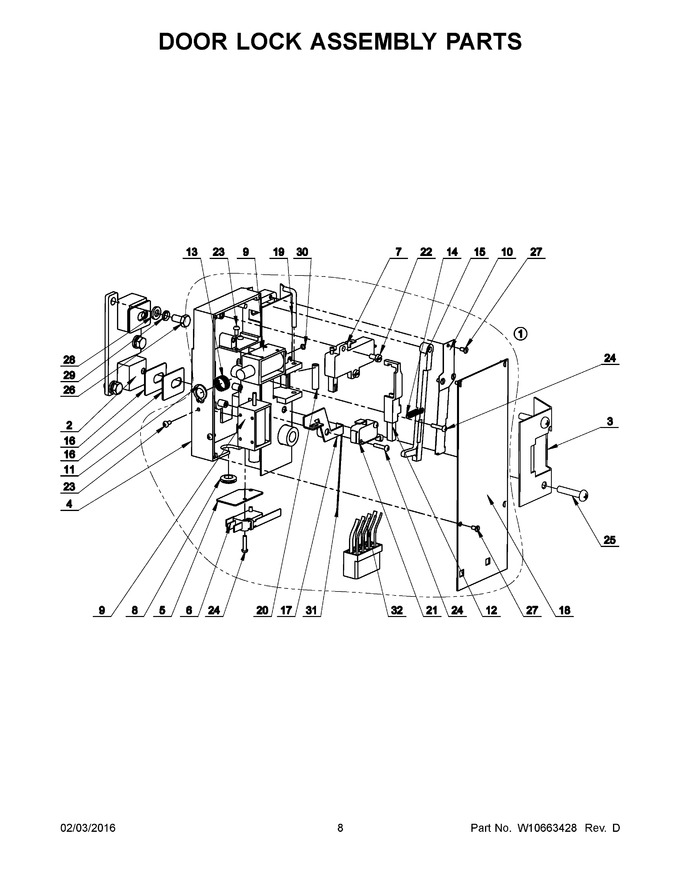

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y23002897 | Door Lock Complete |
|
- | |||||
| 2 | 23001156 | Spacer, Lock |
|
- | |||||
| 3 | 23004234 | Cover, Lock Prior To Series 17 |
|
- | |||||
| 4 | Y23002898 | Door Lock Housing |
|
- | |||||
| 5 | 23003863 | Microswitch Plate |
|
- | |||||
| 6 | 23001145 | Switch, Door Closed |
|
- | |||||
| 7 | 23001135 | Bimetal Switch Assembly |
|
- | |||||
| 8 | 23002479 | Cable Passage |
|
- | |||||
| 9 | 23001146 | Solenoid |
|
- | |||||
| 10 | 23001149 | Leaf Spring |
|
- | |||||
| 11 | 23001137 | Snap Ring |
|
- | |||||
| 12 | 23001140 | Locking, Bar |
|
- | |||||
| 13 | 23002903 | Spring, Solenoid |
|
- | |||||
| 14 | 23002900 | Spring, Locking Part |
|
- | |||||
| 15 | 23002899 | Actuator Arm |
|
- | |||||
| 16 | 23001368 | Hinge Block Shim |
|
- | |||||
| 17 | 23002902 | Emergency Opening Lever |
|
- | |||||
| 18 | W10357120 | Door Lock Cover Plate |
|
- | |||||
| 19 | 23001142 | Latch Roller Pin |
|
- | |||||
| 20 | 23001143 | Latch Roller |
|
- | |||||
| 21 | 23002337 | Microswitch |
|
- | |||||
| 22 | 23003114 | Bolt M4x8 |
|
- | |||||
| 23 | 23002869 | Bolt M3x6 |
|
- | |||||
| 24 | 23001131 | Bolt M3x14 |
|
- | |||||
| 25 | W10666110 | Bolt M5x35 |
|
- | |||||
| 26 | 23002422 | Screw M6x12 |
|
- | |||||
| 27 | 23003113 | Screw M3x6 |
|
- | |||||
| 28 | 23002424 | Washer M6.4 |
|
- | |||||
| 29 | 23002130 | Washer M6 |
|
- | |||||
| 30 | 23001136 | Washer M5.1x3.3x0.1 |
|
- | |||||
| 31 | 23001152 | Cord, Opening (Replaces: 23002901) |
|
Immediately | $ 458.78 | ||||
| 32 | 23002905 | Door Lock Wire Harness Mc4 |
|
- | |||||
| 3A | W10664020 | Cover, Lock Starting With Series 17 |
|
- |
