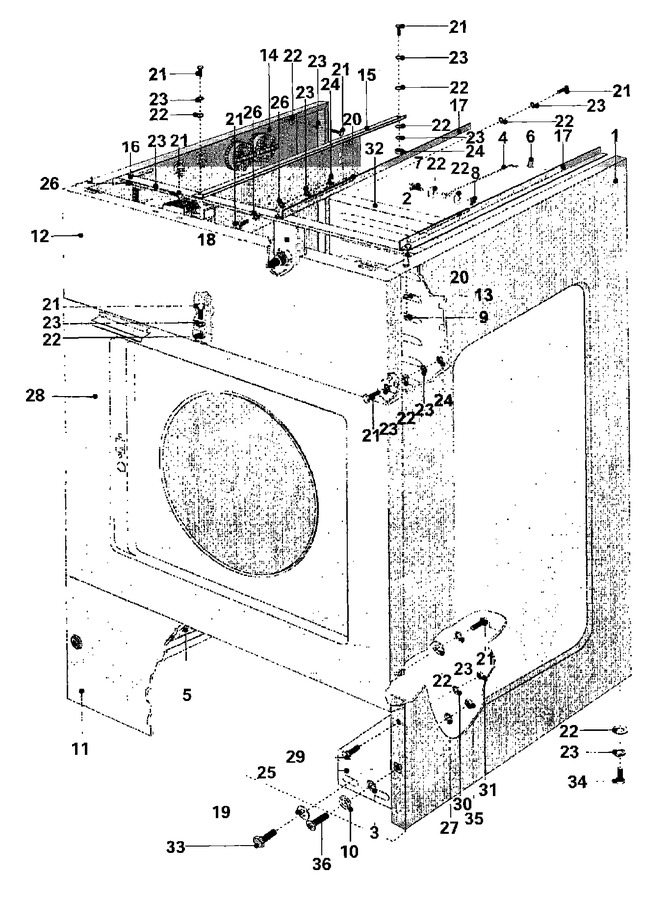

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003574		Panel, Side (rt)	11	Appelez-nous	-
001	23003575		Panel, Side (lt)	10	Appelez-nous	-
002	23001332		Pin, Srv	11	Appelez-nous	-
003	23001338		Washer, Fiber (dia. 15x7x3)	11	Appelez-nous	-
004	23001330		Support Rod, Top Panel	11	Appelez-nous	-
005	23001567		Sheet, Anti-vibration	11	Appelez-nous	-
006	NLA		Hook, Stick	11	Appelez-nous	-
007	23001444		Bolt (m6x30)	11	Appelez-nous	-
008	23001310		Nut, Self Locking (m6)	11	Appelez-nous	-
009	W10244602		Nut (m5) Lu   (Replaces: 23001334)	11			$ 11.90
010	23001337		Washer, Finishing	11	Appelez-nous	-
011	23003619		Panel, Service	11	Appelez-nous	-
012	23003620		Panel, Control	11	Appelez-nous	-
013	23004485		Lock Washer (m5) Lu   (Replaces: 23001333)	11	Appelez-nous	-
014	23003621		Box, Contactor	11	Appelez-nous	-
015	NLA		Holder, Contactor Box	11	Appelez-nous	-
016	NLA		Cross Beam	11	Appelez-nous	-
017	23003578		Holder, Soap Hopper	11	Appelez-nous	-
018	23003579		Holder, Switch	11	Appelez-nous	-
019	23001263		Washer (8.4)	11	Appelez-nous	-
020	23001088		Rubber Trim	11	Appelez-nous	-
021	23001026		Bolt (m6 X 16)	11	Appelez-nous	-
022	23001159		Washer (dia. 14x8.6x1 Stnls)lu	11	Appelez-nous	-
023	23003580		Washer (m6)	11	Appelez-nous	-
024	23001034		Nut (m6)	11	Appelez-nous	-
025	23003581		Reinforcement, Side Panel	11	Appelez-nous	-
026	23001159		Washer (dia. 14x8.6x1 Stnls)lu	11	Appelez-nous	-
027	23001265		Washer (8)	11	Appelez-nous	-
028	23003622		Panel, Front	11	Appelez-nous	-
029	23001026		Bolt (m6 X 16)	11	Appelez-nous	-
030	23001028		Lock Washer External Teethm6lu	11	Appelez-nous	-
031	23001034		Nut (m6)	11	Appelez-nous	-
032	23003582		Panel, Rear	11	Appelez-nous	-
033	23003593		Screw (m8x25)	11	Appelez-nous	-
034	23001374		Bolt (m6 X 20)	11	Appelez-nous	-
035	23001266		Nut M8	11	Appelez-nous	-
036	23001336		Screw (m6 X 50)	11	Appelez-nous	-
