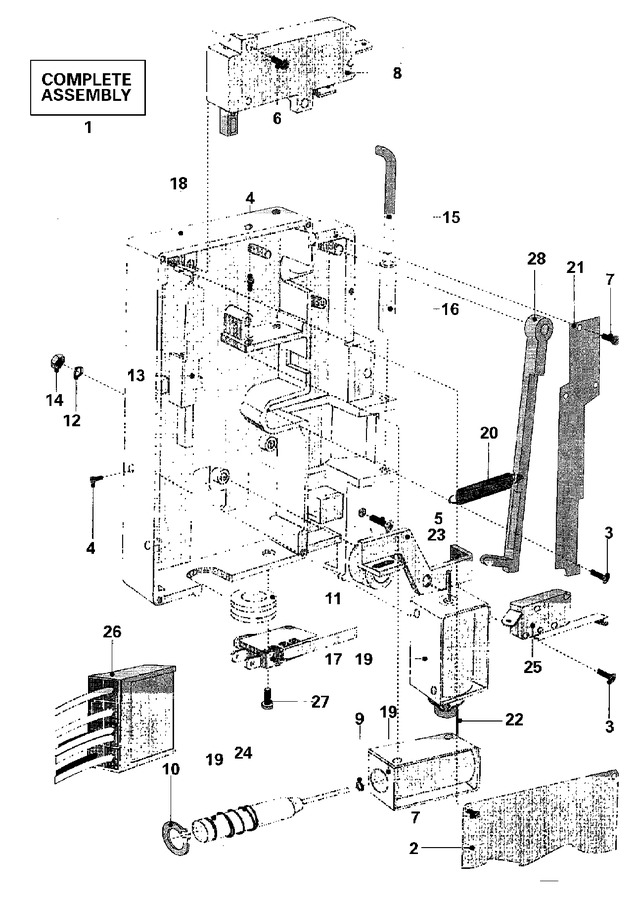

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y23002897		Lock, Door (complete)	11	Appelez-nous	-
002	23001130		Plate, Cover (stnls Steel)	11	Appelez-nous	-
003	23001633		Screw (m3x16)	11	Appelez-nous	-
004	23001132		Screw (m3 X 4 Cross Recessed)	11			$ 12.03
005	23001133		Screw (m5 X 25 Stainless Steel	11	Appelez-nous	-
006	23001070		Screw (m4x10)	11	Appelez-nous	-
007	23001134		Bolt (m3 X 6)	11			$ 5.60
008	23001135		Bimetal, Actuator (230v)	11	Appelez-nous	-
009	23001136		Washer (dia. 5.1 X 3.3 X 0.1)	11	Appelez-nous	-
010	23001137		Ring, Retaining (g10)	11	Appelez-nous	-
011	23001138		Bushing, Cable Passage	11	Appelez-nous	-
012	23004485		Lock Washer (m5) Lu   (Replaces: 23001333)	11	Appelez-nous	-
013	23001140		Bar, Locking	11	Appelez-nous	-
014	W10244602		Nut (m5) Lu   (Replaces: 23001334)	11			$ 11.90
015	23001142		Retainer, Lock Tube (dia.4x45)	11	Appelez-nous	-
016	23001143		Lock Tube (dia. 4x23.5 Stnls)	11	Appelez-nous	-
017	23001145		Microswitch, Long Lever	11	Appelez-nous	-
018	Y23002898		Ground, Plate Lock	11	Appelez-nous	-
019	23001146		Coil (240v)	11	Appelez-nous	-
020	23002900		Spring, Locking Part	11	Appelez-nous	-
021	23001149		Leaf Spring, Latch Bar	11	Appelez-nous	-
022	23001152		Cord, Opening   (Replaces: 23002901)	11		Immediately	$ 458.78
023	23002827		Lever, Emergency Opening   (Replaces: 23001153)	11		Immediately	$ 646.96
024	23002903		Spring, Locking Part	11	Appelez-nous	-
025	23002337		Microswitch W/roller Arm	11	Appelez-nous	-
026	23002905		Wiring, Door Lock	11	Appelez-nous	-
027	23002906		Screw (m3x25)	11	Appelez-nous	-
028	23002899		Handle, Locking Part	11	Appelez-nous	-
