SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Top Cover/soap Hopper


04 - Door Lock


05 - Water System


06 - Rear Panel


07 - Two Motor Drive


08 - Internal Controls

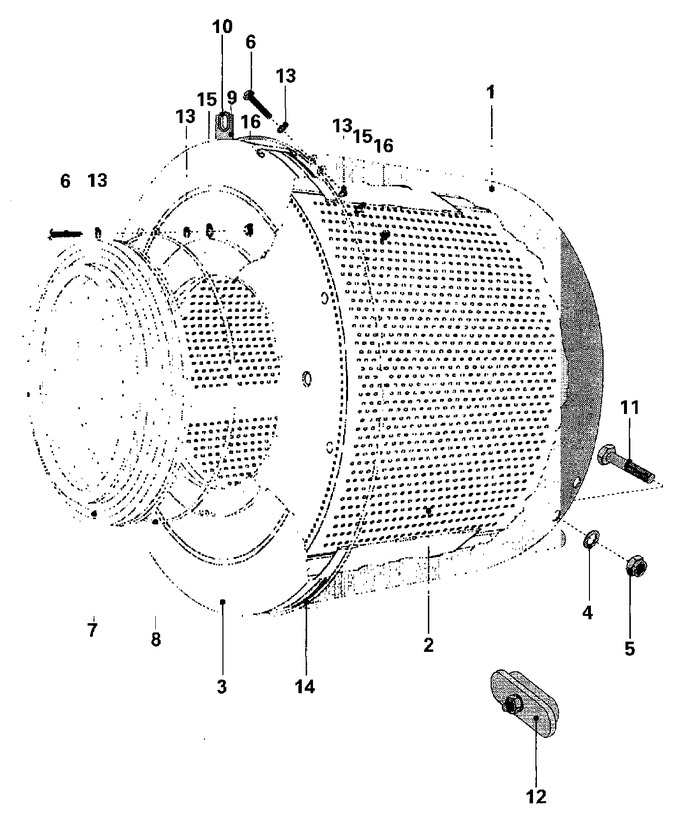

09 - Wash Drum And Tub


10 - Door


11 - Control Panel


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003599		Tub (steam)	11	Appelez-nous	-
002	23003600		Drum	11	Appelez-nous	-
003	23003601		Plate, Drum	11	Appelez-nous	-
004	NLA		Washer	11	Appelez-nous	-
005	NLA		Nut (m16)	11	Appelez-nous	-
006	23003541		Screw (m6x70)	11	Appelez-nous	-
007	23003536		Housing, Tub	11	Appelez-nous	-
008	23003537		Ring, Fixation	11	Appelez-nous	-
009	23003538		Holder	11	Appelez-nous	-
010	23003539		Passage, Cable	11	Appelez-nous	-
011	23003595		Screw (m16x60)	11	Appelez-nous	-
012	23001594		Blind, Heating Element	11	Appelez-nous	-
013	23001309		Washer (6.4) Lu	11	Appelez-nous	-
014	23003603		Ring Ii	11	Appelez-nous	-
015	23001028		Lock Washer External Teethm6lu	11	Appelez-nous	-
016	23003606		Nut (m6)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
