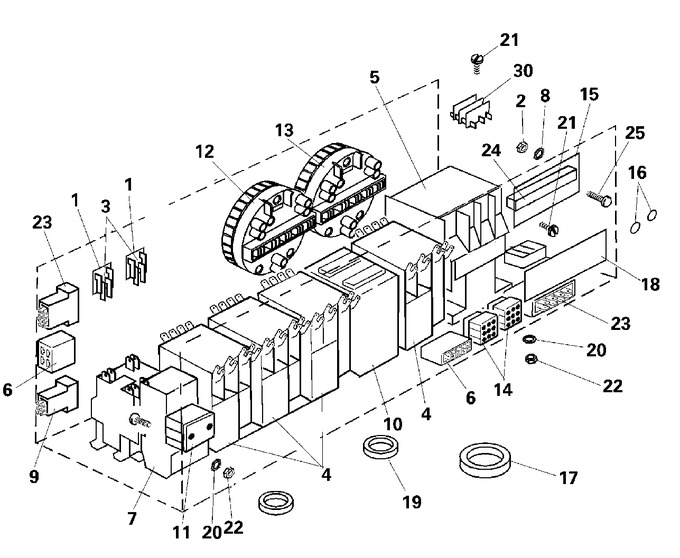

08 - Internal Controls


09 - Wash Drum And Tub


10 - Door


11 - Control Panel


12 - Trunnion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23001094		Bridge, Rectifier	11	Appelez-nous	-
002	23001312		Nut M6	11	Appelez-nous	-
003	23001099		Pc Board Socket	11	Appelez-nous	-
004	23001100		Contactor (lc1-d0901 M7)	11	Appelez-nous	-
004	23001119		Mechanical Interlock, Contacto	11	Appelez-nous	-
005	23001101		Contactor (lc1-d1201 M7)	11	Appelez-nous	-
005	23001102		Contactor (lc1-d1801 M7)	11		Immediately	$ 2,343.16
005	23001103		Contactor (lc1-d3201 M7)	11	Appelez-nous	-
005	23001340		Contactor (lc1-d4011)	11	Appelez-nous	-
006	23001116		Connector Housing (4 Pole)	11	Appelez-nous	-
007	23001106		Relay, Thermal Overload (4-6a)	11	Appelez-nous	-
007	23001107		Relay, Thermal Overload(12-18a	11	Appelez-nous	-
007	23001108		Relay, Thermal Overload (7-10a	11	Appelez-nous	-
007	23001359		Relay, Thermal Overload(2.5-4a	11	Appelez-nous	-
007	23002101		Relay, Overload (lr2-d1312)	11	Appelez-nous	-
008	23001028		Lock Washer External Teethm6lu	11	Appelez-nous	-
009	23001112		Connector Housing (6 Pole)	11	Appelez-nous	-
010	23002348		Transformer, Control Circuit	11			$ 190.25
011	23002959		Connector	11	Appelez-nous	-
012	23003597		Switch, Water Level	11	Appelez-nous	-
013	23003598		Switch, Water Level	11	Appelez-nous	-
014	23003533		Connector (9-pole/female)	11	Appelez-nous	-
015	23001115		Insulation Paper	11	Appelez-nous	-
016	NLA		Label, Earth	11	Appelez-nous	-
017	23001117		Ring, Rubber (dia. 25)	11	Appelez-nous	-
018	23001118		Sticker, Liquid Soap	11	Appelez-nous	-
019	23001138		Bushing, Cable Passage	11	Appelez-nous	-
020	23001013		Lock Washer External Teeth M4	11	Appelez-nous	-
021	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	11			$ 6.27
022	23001055		Nut (m4)	11	Appelez-nous	-
023	23001109		Connector Housing (8 Pole)	11		Immediately	$ 2,940.89
024	23002154		Board, Terminal (6 Poles)	11	Appelez-nous	-
025	23001311		Bolt (m6 X 25)	11	Appelez-nous	-
