SELECT A DIAGRAM

01 - Frame


02 - Cabinet


03 - Top Cover/soap Hopper


04 - Door Lock


05 - Water System


06 - Rear Panel


07 - Two Motor Drive


08 - Internal Controls


09 - Wash Drum And Tub


10 - Door


11 - Control Panel


12 - Trunnion

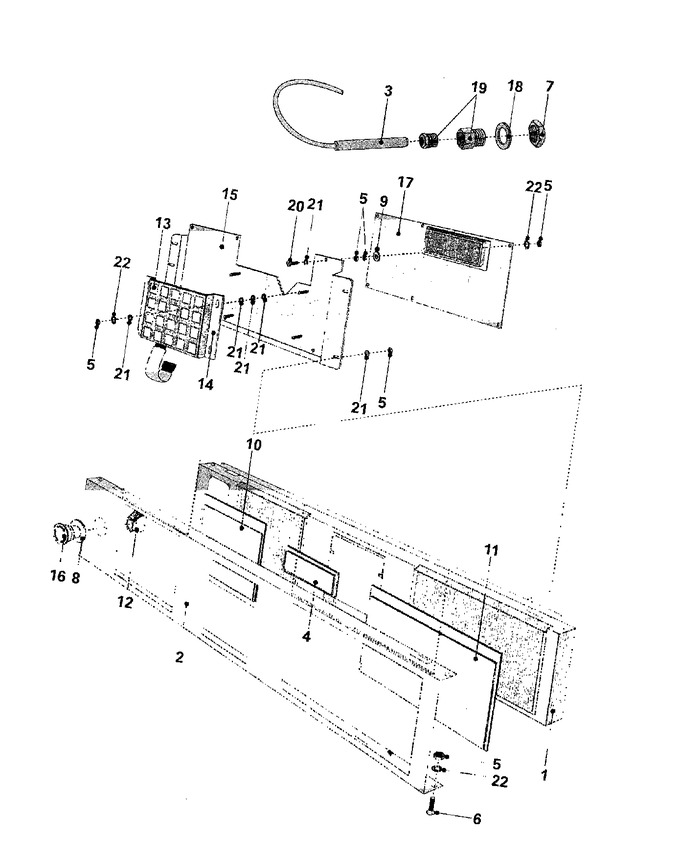

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003617		Panel, Control	11	Appelez-nous	-
002	23003318		Facia, Control Panel	11	Appelez-nous	-
003	23001073		Sensor, Temperature	11	Appelez-nous	-
004	23003560		Display	11	Appelez-nous	-
005	23001055		Nut (m4)	11	Appelez-nous	-
006	23001461		Screw	11	Appelez-nous	-
007	23002936		Nut, Sensor Bushing	11	Appelez-nous	-
008	23002330		Label, Central Stop	11	Appelez-nous	-
009	23002951		Washer, Fiber	11	Appelez-nous	-
010	NLA		Plexi, Insert Card Instrction	11	Appelez-nous	-
011	NLA		Plexi, Insert Card Program	11	Appelez-nous	-
012	23002331		Contactor, Central Stop	11	Appelez-nous	-
013	23001692		Keyboard (membrane Switch)	11	Appelez-nous	-
014	23001083		Bracket, Keyboard	11	Appelez-nous	-
015	23001084		Back Plate, Electronic Board	11	Appelez-nous	-
016	23002332		Knob, Central Stop	11	Appelez-nous	-
017	23002949		Programmer	11	Appelez-nous	-
017	23003742		Controller, English, Spanish	11	Appelez-nous	-
017	23003743		Controller, Apl281ne V1.04	11	Appelez-nous	-
018	23002179		Washer	11	Appelez-nous	-
019	23001592		Adaptor	11	Appelez-nous	-
020	W10295997		Screw (m4 X 16 Ck)   (Replaces: 23001089)	11			$ 6.27
021	23001056		Washer (4.3)	11	Appelez-nous	-
022	23001013		Lock Washer External Teeth M4	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
