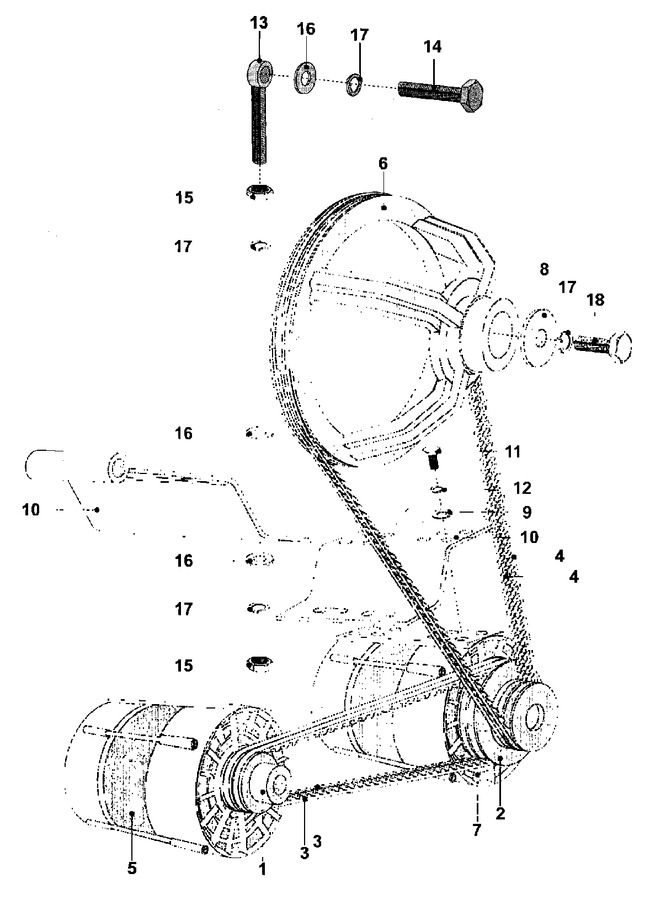

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23003583		V-pulley I	11	Appelez-nous	-
002	23003584		V-pulley Ii (50hz)	11	Appelez-nous	-
002	23003585		V-pulley Ii (60hz)	11	Appelez-nous	-
003	23003586		V-belt Ii (xpz 1137 Lw)	11	Appelez-nous	-
004	23003587		V-belt Ii (spz 1562 Lw)	11			$ 40.93
005	23003589		Motor (60hz)	11	Appelez-nous	-
006	23003590		V-pulley	11	Appelez-nous	-
007	23003589		Motor (60hz)	11	Appelez-nous	-
008	23003591		Washer	11	Appelez-nous	-
009	23003491		Washer (8.4)	11	Appelez-nous	-
010	23003592		Plate, Motor	11	Appelez-nous	-
011	23003593		Screw (m8x25)	11	Appelez-nous	-
012	23001265		Washer (8)	11	Appelez-nous	-
013	NLA		Screw (m16x110)	11	Appelez-nous	-
014	23003595		Screw (m16x60)	11	Appelez-nous	-
015	NLA		Nut (m16)	11	Appelez-nous	-
016	23003594		Washer	11	Appelez-nous	-
017	23001757		Washer (16)	11	Appelez-nous	-
018	23003596		Screw (m16x30)	11	Appelez-nous	-
