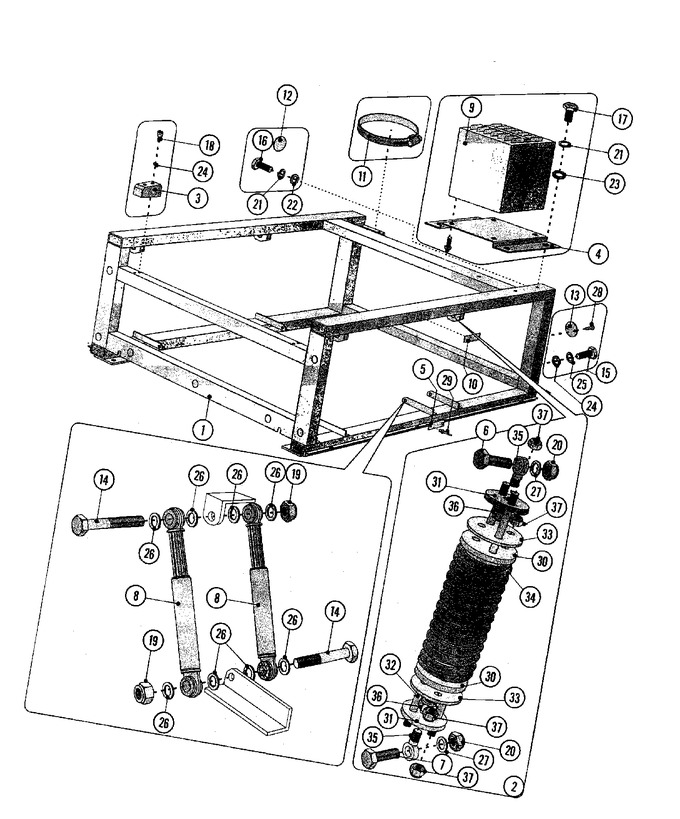

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 23003176 | Frame | 10 |
|
- | ||||
| 002 | 23002341 | Spring Hinge Assy. | 10 |
|
- | ||||
| 003 | 23002342 | Block | 10 |
|
- | ||||
| 004 | 23002343 | Holder, Transformer | 10 |
|
- | ||||
| 005 | NLA | Plate, Small | 10 |
|
- | ||||
| 006 | NLA | Screw | 10 |
|
- | ||||
| 007 | NLA | Screw | 10 |
|
- | ||||
| 008 | 23002347 | Damper | 10 |
|
- | ||||
| 009 | 23002142 | Transformer | 10 |
|
- | ||||
| 010 | 23001567 | Sheet, Anti-vibration | 10 |
|
- | ||||
| 011 | 23001750 | Ring, Clamp (40-60) | 10 |
|
- | ||||
| 012 | NLA | Label, Earth | 10 |
|
- | ||||
| 013 | NLA | Plate, Index | 10 |
|
- | ||||
| 014 | 23002351 | Screw (m10x80) | 10 |
|
- | ||||
| 015 | NLA | Screw (m8x15) | 10 |
|
- | ||||
| 016 | 23002353 | Screw (m6x12) | 10 |
|
- | ||||
| 017 | 23004114 | Screw (m6x16) (Replaces: 23002354) | 10 |
|
- | ||||
| 018 | NLA | Screw (m8x30) | 10 |
|
- | ||||
| 019 | 23002356 | Nut M10 | 10 |
|
- | ||||
| 020 | 23001651 | Nut (m16) | 10 |
|
- | ||||
| 021 | 20007283 | Washer (Replaces: 23002357) | 10 |
|
$ 504.91 | ||||
| 022 | 23002129 | Washer (m4) | 10 |
|
- | ||||
| 023 | 23002282 | Washer (6) | 10 |
|
- | ||||
| 024 | 23002358 | Washer M8 | 10 |
|
- | ||||
| 025 | 23002359 | Washer (m6) | 10 |
|
- | ||||
| 026 | 23002655 | Washer (10.5) | 10 |
|
- | ||||
| 027 | 23001735 | Washer M17 | 10 |
|
- | ||||
| 028 | 23001777 | Screw, Drive (2x4) | 10 |
|
- | ||||
| 029 | 23002362 | Rivet W/crank | 10 |
|
- | ||||
| 030 | 23002363 | Sleeve | 10 |
|
- | ||||
| 031 | 23002364 | Disk | 10 |
|
- | ||||
| 032 | NLA | Drawing Rod | 10 |
|
- | ||||
| 033 | 23002366 | Packing Piece | 10 |
|
- | ||||
| 034 | 23002367 | Spring | 10 |
|
- | ||||
| 035 | 23002368 | Screw, Eye | 10 |
|
- | ||||
| 036 | 23001651 | Nut (m16) | 10 |
|
- | ||||
| 037 | 23002356 | Nut M10 | 10 |
|
- |
