SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Panels


04 - Tub


05 - Inner Tub


06 - Bearings & Trunnion Assembly


07 - Motor & Basket Pulley


08 - Tensioning System


09 - Door


10 - Door Lock


11 - Soap Box


12 - Filling System


13 - Valves


14 - Control Panel


15 - Rear Panel


16 - Electrical Components


17 - Steam Supply


18 - Drain Supply


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

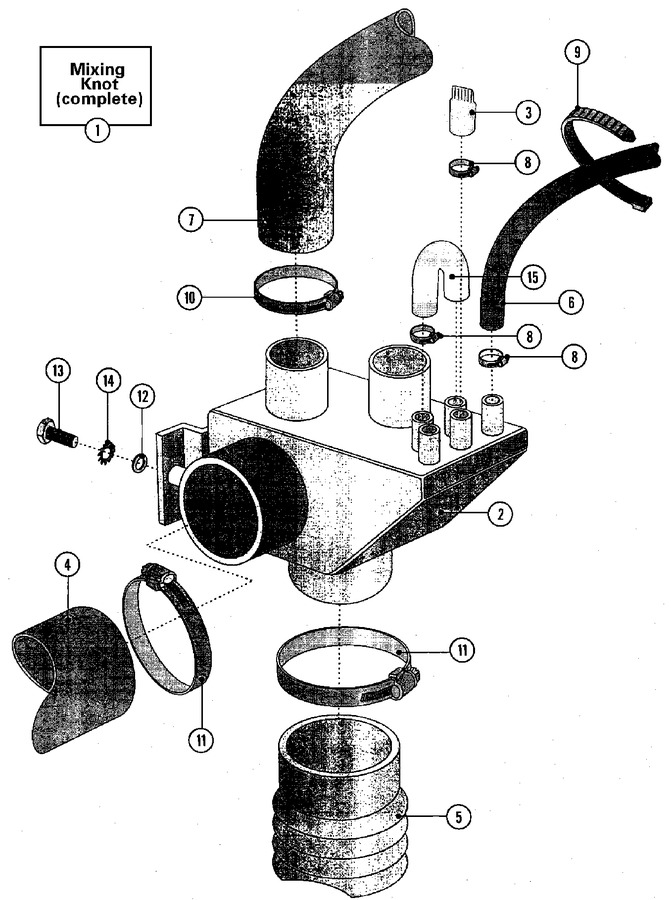

001	23003232		Knot, Mixing	10	Appelez-nous	-
002	23002752		Mixer	10	Appelez-nous	-
003	23001459		Liquid Soap, Hose	10	Appelez-nous	-
004	23001589		Tube, Soap Box (1=210mm)	10	Appelez-nous	-
005	23002754		Hose	10	Appelez-nous	-
006	23001459		Liquid Soap, Hose	10	Appelez-nous	-
007	23002755		Hose	10	Appelez-nous	-
008	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
009	23001720		Binder, Cable	10	Appelez-nous	-
010	WP616099		Clamp, Hose (32-50)   (Replaces: 23001261)	10		Immediately	$ 7.03
011	23001256		Clamp, Hose (60-80)	10	Appelez-nous	-
012	23002438		Washer (m6)	10	Appelez-nous	-
013	23002463		Screw (m6 X 30)	10	Appelez-nous	-
014	23002756		Washer	10	Appelez-nous	-
015	23001459		Liquid Soap, Hose	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
